Implement Pto Yoke, 6-Series X 1-1/8"

Implement Pto Yoke, 6-Series X 1-1/8"

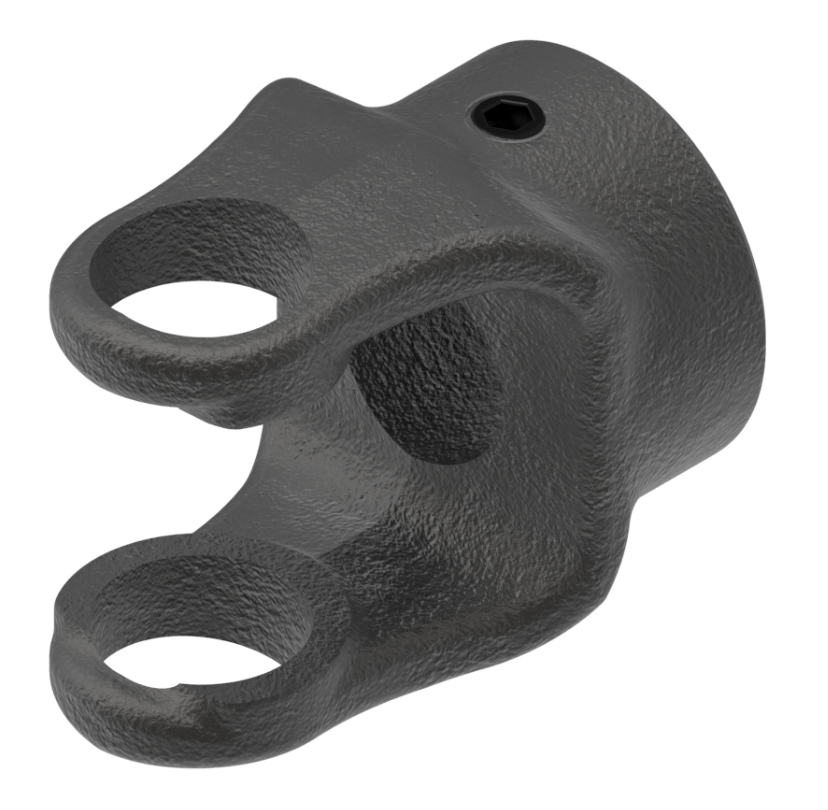

The 800-0618 Implement PTO Yoke is a rugged implement-side driveline connector designed as the final connection between a PTO drive shaft and the machine or implement attached to a tractor. Built with a round bore with keyway and a set screw retention style, it delivers a secure fit and dependable torque transfer for common PTO driveline applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-0618
• Product Type: Implement PTO yoke
• Series: 6-Series
• Bore / Size: 1.12 in (28 mm) (commonly referenced as 1-1/8")
• Bore Style: Round with keyway
• Connection Type: Set screw
• Set Screw: 3/8-16
• Keyway Size: 0.25 in (6 mm)
• HP Rating @ 540 RPM: 19 HP (14 kW)
• HP Rating @ 1000 RPM: 29 HP (22 kW)
• Overall Length: 2.50 in (64 mm)
• Height: 2.50 in (64 mm)
• Width: 2.03 in (52 mm)
• Weight: 1.10 lb
• Shipping Dimensions: 3.17 in L × 2.50 in H × 2.03 in W (8 cm L × 6 cm H × 5 cm W)
• Shipping Volume: 16.09 in³ (264 cm³)
• Shipping Weight: 1.10 lb

Ideal For

• Replacing or outfitting an implement-end PTO driveline connection
• Applications needing a 28 mm (1-1/8") round bore with keyway fit
• Setups using a set screw retention style (3/8-16)
• Equipment operating at typical PTO speeds where 540/1000 RPM HP ratings matter
• Farm and utility implements requiring a 6-Series yoke connection
