Implement Pto Yoke, 6-Series X 7/8"

Implement Pto Yoke, 6-Series X 7/8"

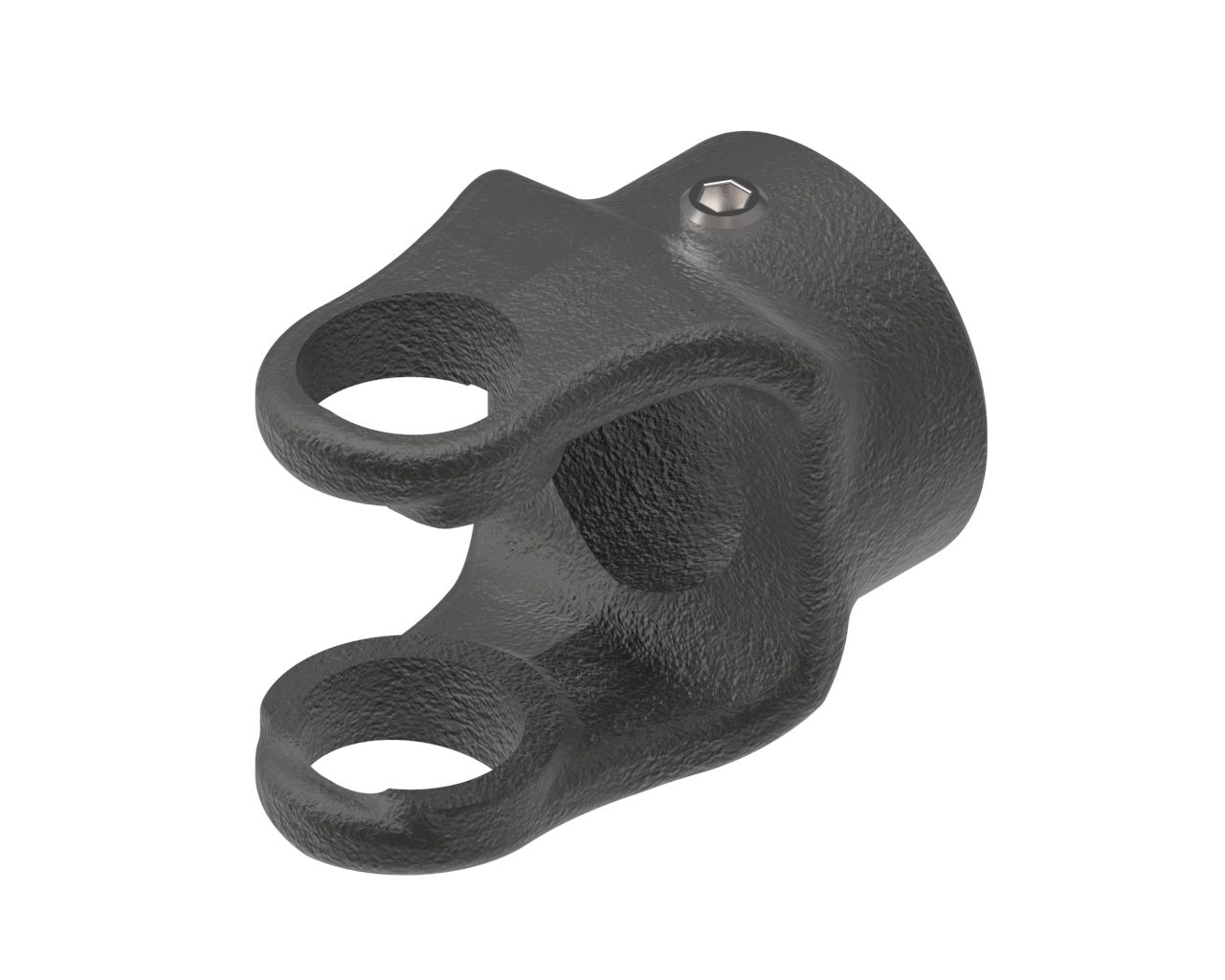

The 800-0614 Implement PTO Yoke is a 6-series implement-end yoke that serves as the final connection between a PTO drive shaft and the tractor-powered implement or machine. This version features a 7/8" round bore with keyway and a set screw connection for a secure, serviceable fit. Rated for up to 29 HP at 1000 RPM (and 19 HP at 540 RPM), it’s a solid choice for light-to-mid PTO applications where correct series matching and bore style are critical.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-0614
• Product Type: Implement PTO yoke
• Series: 6-Series
• Bore: 7/8" (0.87") — Round with keyway
• Connection Type: Set screw
• Set Screw Thread: 3/8"-16
• Keyway Size: 0.19" (5 mm)
• Power Rating: 29 HP @ 1000 RPM / 19 HP @ 540 RPM
• Overall Length: 2.50" (64 mm)
• Height: 2.50" (64 mm)
• Width: 2.03" (52 mm)
• Weight: 1.20 lb (1 kg)
• Shipping Dimensions: 3.17" L × 2.50" H × 2.03" W
• Shipping Volume: 16.09 in³ (264 cm³)
• Shipping Weight: 1.20 lb (1 kg)

Ideal For

• Replacing a worn or damaged implement-end PTO yoke on a 6-series driveline
• PTO setups requiring a 7/8" round bore with keyway
• Applications needing a secure set screw style attachment
• Implements operating around 19 HP (540 RPM) or 29 HP (1000 RPM) ratings
• Farm and equipment maintenance where correct series and bore fitment is essential
