Inner (Lemon) Pto Tube, Walterscheid 2100/100-Series, 23.5mm X 4mm

Inner (Lemon) Pto Tube, Walterscheid 2100/100-Series

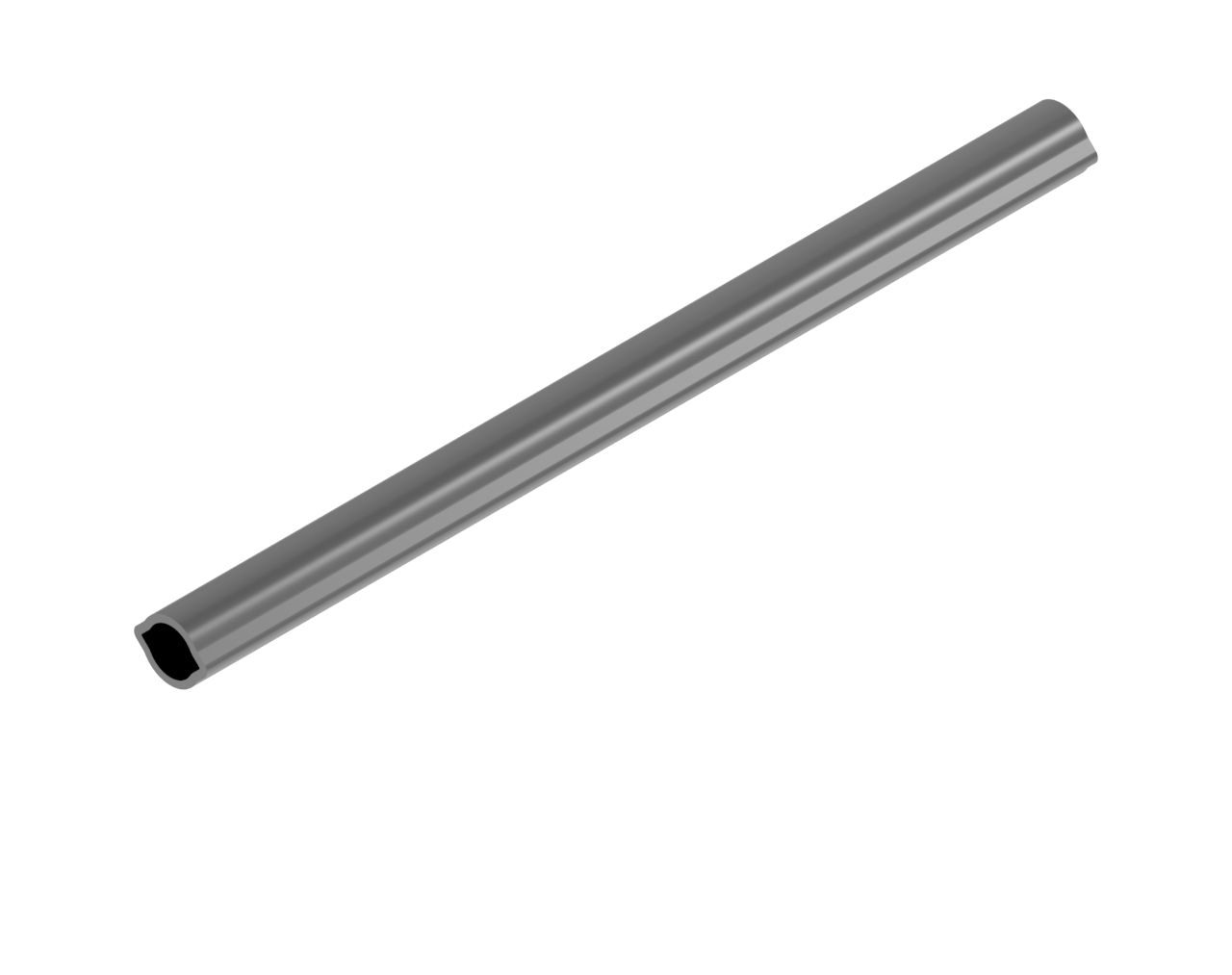

The A-W022513-A Inner (Lemon) PTO Tube for Walterscheid 2100/100-Series (23.5 mm x 4 mm) is an inner-profile driveline tube used inside a PTO shaft assembly to provide strength, alignment, and smooth telescoping between driveline sections. This German-style “lemon” profile tube is built for metric PTO drivelines and uses a roll pin connection, making it a solid replacement option when rebuilding or repairing compatible Walterscheid-style PTO shafts.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-W022513-A
• Product Type: Inner PTO driveline tube (German-style lemon profile)
• Series Compatibility: Walterscheid 2100/100-Series
• Tube Profile: Lemon (German style)
• Tube Size / OD: 0.92 in (23 mm)
• Wall Thickness: 4 mm (as provided)
• Bore Size: 0.66 in (17 mm)
• Bore Style: Clearance for uncoated tube
• Connection Type: Roll pin
• Max. Overall Length: 59.05 in (1500 mm)
• Height: 1.21 in (31 mm)
• Width: 0.92 in (23 mm)
• Outside Diameter: 0.92 in (23 mm)

Ideal For

• Rebuilding or repairing a PTO driveline needing an inner lemon-profile tube
• Replacing damaged, bent, or worn driveline tubing on Walterscheid 2100/100-Series shafts
• Metric PTO drivelines requiring 23 mm tube size and roll pin retention
• Applications where a smooth telescoping tube fit is critical for driveline performance and safety
