Inner Pto Tube, B&P 4-Series, 36mm X 3.9 Wall

Inner Pto Tube, B&P 4-Series, 36mm X 3.9 Wall

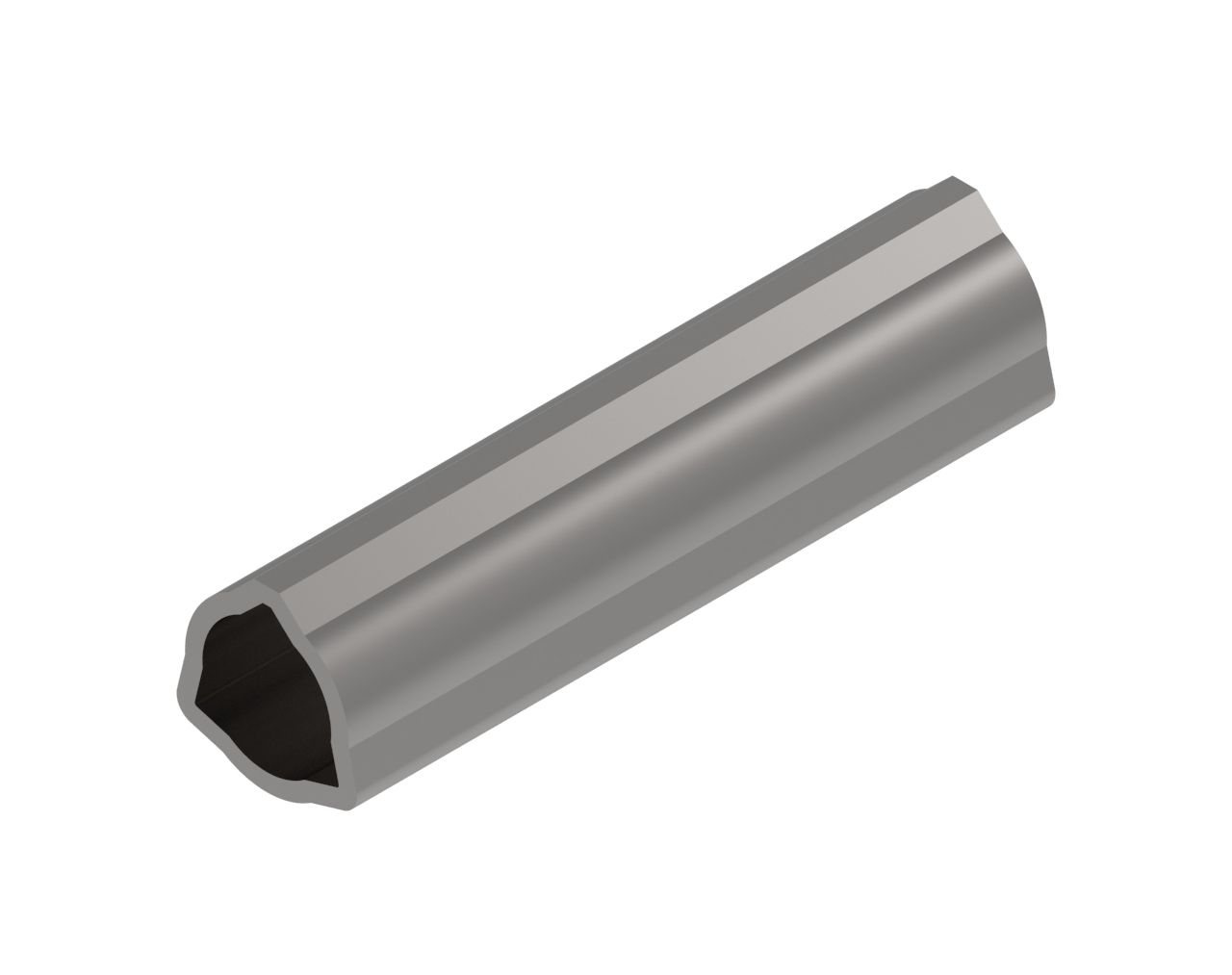

The A-BP125071500-A Inner PTO Tube, B&P 4-Series (36mm × 3.9 wall) is a heavy-duty inner driveline tube designed to encase and reinforce the shaft within a PTO drive shaft assembly. Built for Bondioli & Pavesi (B&P) 4-Series applications, it features a 36mm tube size with roll pin connection style and a long 1500mm (59.05") length for fabrication, replacement, or driveline rebuild work.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / SKU: A-BP125071500-A
• Product Type: Inner PTO tube
• Series / Profile: B&P 4-Series (metric tube profile)
• Tube Size / OD: 36 mm (1.41")
• Wall Thickness: 3.9 mm
• Length: 1500 mm (59.05")
• Connection Type: Roll pin
• Bore / Clearance: 28 mm (1.10") clearance for uncoated tube
• Outside Diameter: 36 mm (1.41")
• Height: 36 mm (1.41")
• Width: 34 mm (1.33")
• Weight: 5 kg (10.50 lb)
• Shipping Dimensions: 150 cm L × 4 cm H × 4 cm W (59.05" L × 1.417" H × 1.417" W)
• Shipping Volume: 1943 cm³ (118.57 in³)
• Shipping Weight: 5 kg (10.50 lb)

Ideal For

• Rebuilding or repairing B&P 4-Series PTO drivelines
• Replacing a worn, bent, or damaged inner PTO tube
• Driveline fabrication where a 36mm metric tube profile is required
• Applications needing a secure roll pin connection style
• Restoring driveline strength with a 3.9mm wall reinforcement tube
