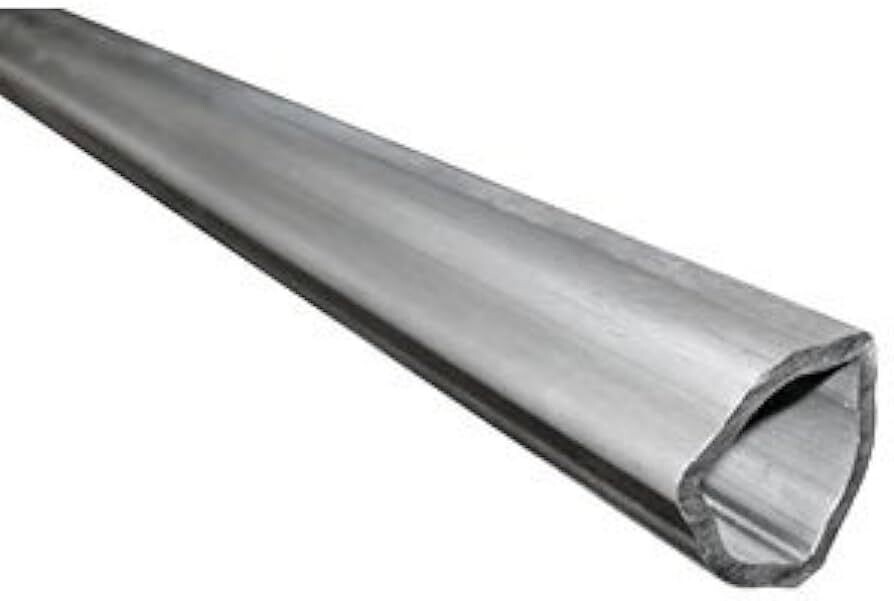

Inner Pto Tube, B&P 5 & 6-Series, 45mm X 3.9 Wall

Inner Pto Tube, B&P 5 & 6-Series

The A-BP125091500-A Inner PTO Tube is a heavy-duty inner driveline tube for B&P 5 & 6-Series PTO shafts, designed to act as the cylindrical sleeve that supports and reinforces the shaft within the PTO driveline. With a 45 mm tube size and 3.9 mm wall, it’s built for strength and long service—because PTO tubes don’t get to live an easy life.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP125091500-A
• Product Type: Inner PTO tube
• Series Compatibility: B&P 5 & 6-Series
• Replaces: 400-6545
• Tube Size / Outside Diameter: 45 mm (1.76 in)
• Wall Thickness: 3.9 mm
• Length: Up to 1500 mm (59.05 in)
• Width: 41 mm (1.62 in)
• Height: 45 mm (1.76 in)
• Bore 1: 37 mm (1.45 in) — clearance for uncoated tube (as stated)
• Connection 1: Roll pin
• Function Notes: Serves as a metal cylindrical encasement for a shaft within a PTO driveline and provides supplemental reinforcement (as stated)

Ideal For

• Replacing worn or damaged inner tubes on B&P 5 & 6-Series PTO drivelines
• Repairs needing a 45 mm tube with 3.9 mm wall and up to 1500 mm length
• Drivelines using a roll pin connection
• Operators who want the PTO to run smooth—without the tube trying to become modern art in the field
