Inner Pto Tube, Walterscheid 220/720-Series

Inner (Lemon) Pto Tube, Walterscheid 220/720 & 2400-Series

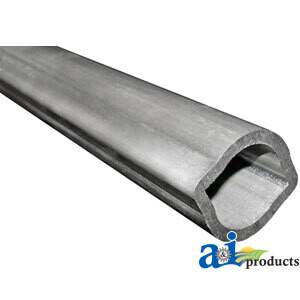

The A-W317582-A Inner (Lemon) PTO Tube is a metric-profile inner PTO driveline tube designed for Walterscheid 220/720 and 2400-Series applications. Built in the German-style “lemon” profile for proper driveline fit and reinforcement, it provides the durable tubular encasement needed to protect and support the PTO shaft—because a PTO that wobbles is just a fancy way to make repairs faster than progress.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: A-W317582-A
• Alt / Reference Number: 400-7539
• Product Type: Inner PTO tube (German-style lemon profile)
• Fits Series: Walterscheid 220/720 & 2400-Series
• Tube Size: 39.5 mm OD × 4.5 mm wall (as provided)
• Connection Type: Roll pin
• Bore 1: 1.14 in (29 mm) — clearance for uncoated tube
• Length: Up to 59.05 in (1500 mm)
• Outside Diameter / Tube Size / Width: 1.55 in (39 mm)
• Height: 1.94 in (49 mm)

Ideal For

• Replacing worn or damaged inner PTO tubing on Walterscheid 220/720 and 2400-Series drivelines
• PTO driveline repairs needing a German “lemon” profile tube for proper fit and torque transfer
• Applications using a roll pin connection and uncoated tube clearance
• Farm implement maintenance where keeping the driveline straight, supported, and protected prevents bigger headaches later
