Inner Tube Yoke, #3 B&P

Inner Tube Yoke, #3 B&P

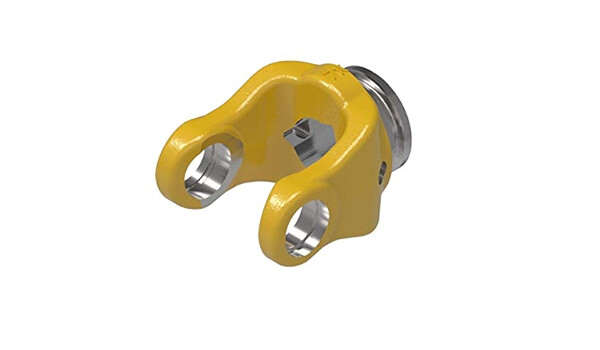

The 300-6336 Inner Tube Yoke is a Weasler shaft (inner profile) yoke designed to connect a cross and bearing kit to the telescoping inner tube of a PTO driveline. Built for #3 B&P applications, it features a 36 mm trilobe (inner profile) bore with a roll-pin connection to secure the yoke to the inner tube, providing dependable power transfer in agricultural implement drivelines.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-6336
• Product Type: Inner tube yoke / shaft (inner profile) yoke
• Series / Type: #3 B&P
• Bore: 1.41 in (36 mm)
• Bore Style: 36 mm trilobe
• Connection Type: Roll pin
• Pin Hole Size: 0.31 in (8 mm)
• Overall Length: 3.15 in (80 mm)
• Height: 3.48 in (88 mm)
• Width: 2.17 in (55 mm)
• Outside Diameter: 2.12 in (54 mm)
• Power Rating @ 1000 RPM: 58 HP (43 kW)
• Power Rating @ 540 RPM: 38 HP (28 kW)
• Weight: 1.82 lb (1 kg)
• Shipping Dimensions: 3.96" L × 3.48" H × 2.17" W
• Shipping Volume: 29.90 in³ (490 cm³)
• Shipping Weight: 1.82 lb (1 kg)

Ideal For

• Replacing a worn inner profile yoke on a PTO driveline
• Drivelines using a 36 mm trilobe inner tube connection
• PTO repairs where a roll-pin secured inner yoke is required
• Implement drivelines needing rated capacity up to 58 HP @ 1000 RPM
• Maintenance builds pairing the yoke with the correct cross and bearing kit
