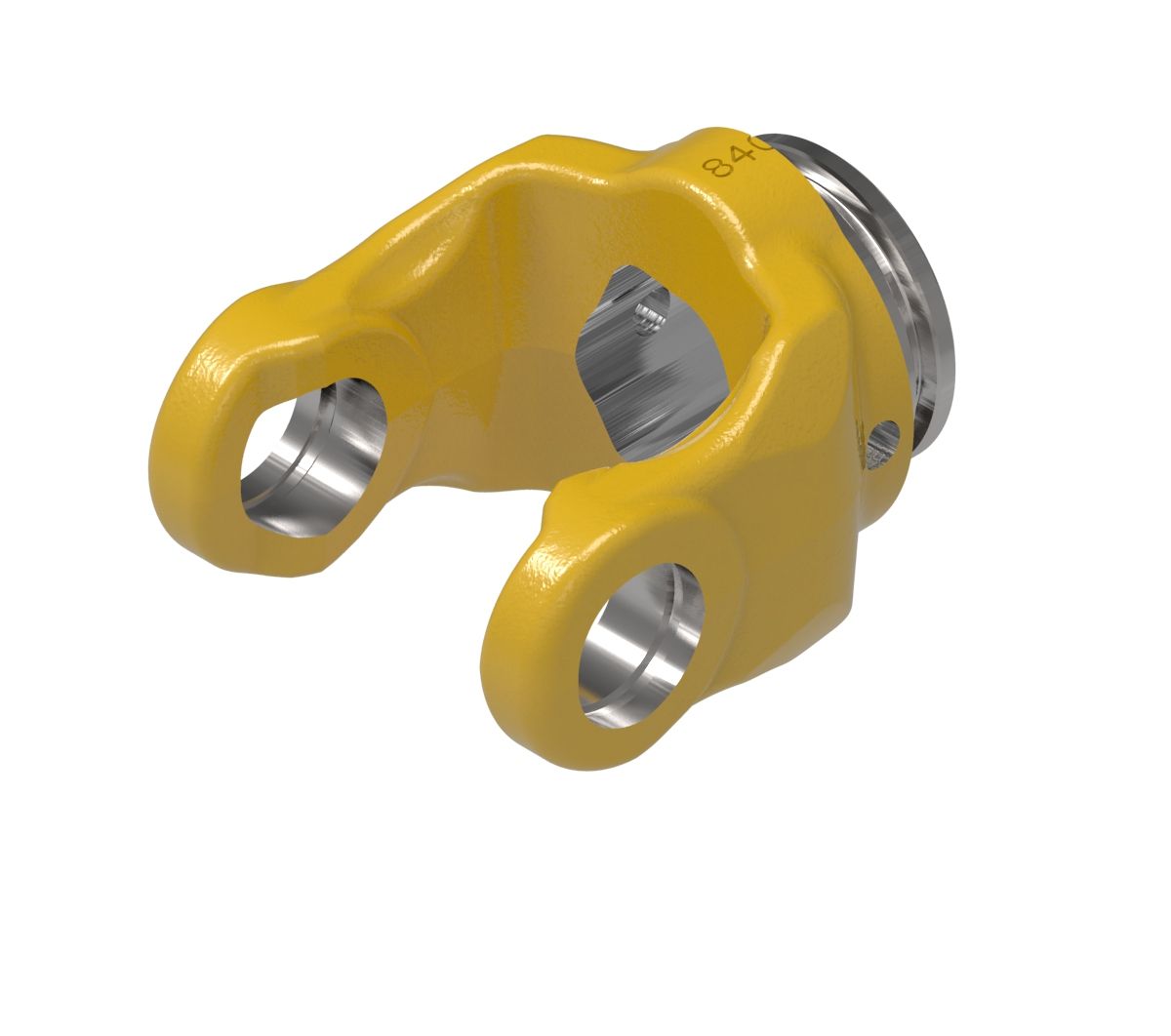

Inner Tube Yoke, #4 B&P

Inner Tube Yoke, #4 B&P

The A-BP204046852-A Inner Tube Yoke is a durable inner profile driveline yoke used to connect a cross and bearing kit to the telescoping shaft/inner tube in PTO driveline assemblies. Built for #4-series applications, it features a 36 mm trilobe bore with a roll pin connection, providing a secure fit for metric profile driveline systems where dependable power transfer matters.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP204046852-A
• Product Type: Inner Tube Yoke (Inner Profile / Shaft Yoke)
• Series: #4 (B&P)
• Bore: 1.41 in (36 mm) — 36 mm Trilobe
• Connection Type: Roll Pin
• Pin Hole: 0.31 in (8 mm)
• Rated Power @ 1000 RPM: 70 HP (52 kW)
• Rated Power @ 540 RPM: 45 HP (34 kW)
• Overall Length: 3.34 in (85 mm)
• Height: 3.82 in (97 mm)
• Width: 2.36 in (60 mm)
• Outside Diameter: 2.12 in (54 mm)
• Item Weight: 2.10 lb (1 kg)
• Shipping Dimensions: 4.21 in L × 3.82 in H × 2.36 in W (11 cm L × 10 cm H × 6 cm W)
• Shipping Volume: 37.95 in³ (622 cm³)
• Shipping Weight: 2.10 lb (1 kg)

Ideal For

• Replacing worn yokes on PTO drivelines using a #4-series inner tube (shaft) yoke
• Metric profile drivelines requiring a 36 mm trilobe bore
• Applications needing a roll-pin retained yoke connection
• PTO implements operating at 540 or 1000 RPM within the listed HP ratings
• Shops assembling or servicing telescoping PTO shaft systems where secure cross/bearing connection is critical
