Inner Tube Yoke, #7 B&P

Inner Tube Yoke, #7 B&P

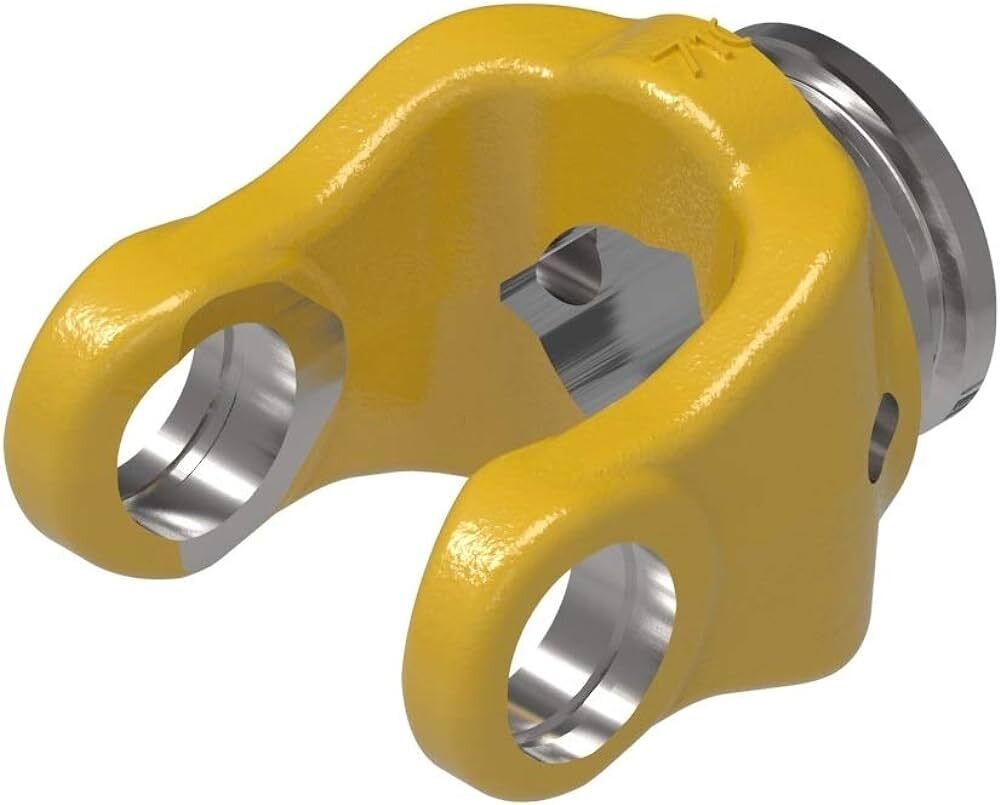

The 300-6745 Inner Tube Yoke (#7 B&P) is a PTO driveline tube yoke (outer profile yoke) designed to connect a cross and bearing kit to the outer tube side of a telescoping PTO shaft. Built for demanding driveline service, it features a 45 mm trilobe profile and a roll-pin connection for secure retention. Rated up to 145 HP at 1000 RPM and 94 HP at 540 RPM, it’s a strong replacement option for maintaining proper PTO power transfer and fitment on compatible #7 Bondioli & Pavesi drivelines.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 300-6745
• Brand / Compatibility: B&P (Bondioli & Pavesi) #7
• Product Type: Inner tube yoke / tube yoke (outer profile yoke)
• Bore / Profile: 1.77 in / 45 mm (45 mm trilobe)
• Connection Type: Roll pin
• Horsepower Rating @ 1000 RPM: 145 HP (108 kW)
• Horsepower Rating @ 540 RPM: 94 HP (70 kW)
• Overall Length: 4.21 in / 107 mm
• Height: 4.72 in / 120 mm
• Width: 2.95 in / 75 mm
• Weight: 3.76 lb / 2 kg
• Shipping Dimensions: 5.3 in L × 4.72 in H × 2.95 in W
• Shipping Volume: 73.80 in³ / 1209 cm³

Ideal For

• Replacing a worn or damaged tube yoke on a telescoping PTO driveline
• PTO shafts using a 45 mm trilobe (#7 B&P) profile connection
• Applications requiring dependable performance at 540 or 1000 RPM
• Driveline repairs needing a roll-pin retained yoke style
• Farm equipment maintenance where correct profile fit and horsepower rating are critical
