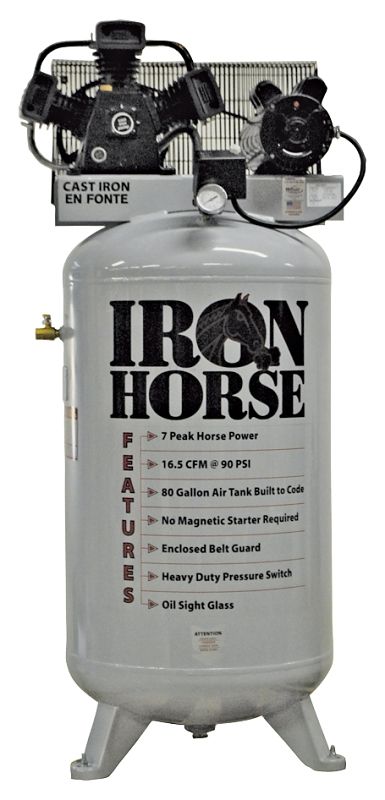

Iron Horse IHD7180V1 Air Compressor, 80Gal. 5HP

Iron Horse IHD7180V1 Air Compressor, 80Gal. 5HP

The Iron Horse IHD7180V1 Air Compressor is a high-capacity, shop-ready air system built to deliver consistent power for demanding air tools and continuous use. Featuring an 80-gallon vertical tank and a rugged 3-piston V-style cast iron pump, this unit is designed for long service life, cooler operation, and reduced vibration. Producing 16.5 CFM at 90 PSI with a max pressure of 150 PSI, it’s ready to handle everything from impact tools to paint systems—without constantly cycling or struggling to keep up.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: IHD7180V1
• Brand: Iron Horse
• Product Type: Electric Vertical Air Compressor
• Tank Capacity: 80 gallons (vertical tank)
• Motor Rating: 5 HP running / 7 HP peak
• Voltage: 208–230V, Single Phase
• Airflow: 16.5 CFM @ 90 PSI
• Max Pressure: 150 PSI
• Pump Type: 3-piston V-style cast iron pump
• Stages: Single-stage
• Material: Heavy-duty cast iron construction
• Dimensions: 28" L x 24" W x 64" H
• Tank Certification: ASME certified pressure vessel
• Drive System: Belt-driven with enclosed metal guard
• Cooling Design: V-style configuration improves airflow and heat dissipation
• Valves: High-efficiency reed valves for optimized performance
• Oil System: Oil-lubricated with easy-view sight glass
• Controls: Heavy-duty pressure switch with on/off control
• Starter: No magnetic starter required
• Outlet: 1/2" heavy-duty ball valve included
• Maintenance: Removable cylinders for easier servicing
• Thermal Protection: Motor protected against overheating

Ideal For

• Workshops, garages, and light industrial applications
• Running impact wrenches, grinders, sanders, and paint equipment
• Users needing steady air supply without frequent cycling
• Shops with 208–230V single-phase power
• Anyone tired of waiting on a small compressor to catch up—this one keeps up with you instead of the other way around
