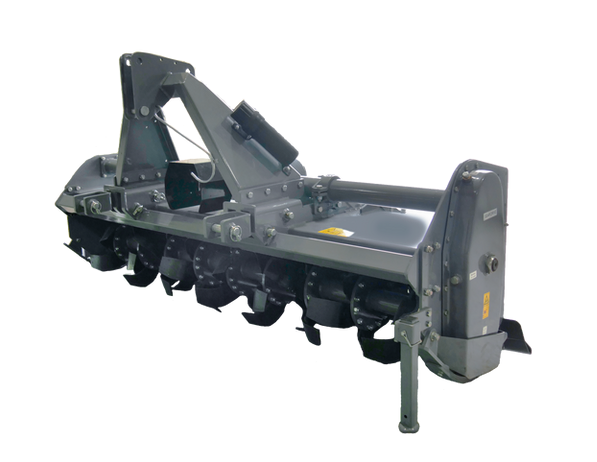

IronCraft Extreme Duty Multi-Speed Rotary Tiller, 7-1/2Ft

IronCraft Extreme Duty Multi-Speed Rotary Tiller, 7-1/2Ft

The IronCraft VH-90 Extreme Duty Multi-Speed Rotary Tiller is a heavy-duty, gear-driven tiller built to power through tough, compacted, and rocky soils with consistent performance and depth control. With a 7-1/2 ft (90") working width and a robust rotor system, it’s designed for larger tractors and demanding field conditions where lighter tillers fall short. The multi-speed rotor capability allows operators to adjust tilling intensity to match soil conditions, while the forward rotation design ensures effective soil mixing and seedbed preparation. Built for durability and reliability, this tiller is ready to handle serious ground work—because stubborn soil usually doesn’t loosen up on its own.

Country of Origin
Made in India

Key Features / Specifications

• Model / Part Number: VH-90
• Brand / Manufacturer: IronCraft
• Product Family: VH Series
• Product Type: Extreme-duty rotary tiller (gear drive)
• Working Width: 90 in (7 ft 6 in)
• Overall Width: 95 in
• Max Working Depth: Up to 9 in
• Tractor Requirements: 75–125 PTO HP
• PTO Speed: 540 RPM
• Hitch Type: Category 2 or 3
• Rotation: Forward rotation
• Rotor Design: Multi-speed adjustable rotor for varying soil conditions
• Rotor Diameter: 3-1/2 in shaft with 17 in swing diameter
• Flanges: 9 flanges on rotor
• Tines per Flange: 6
• Total Tines: 54 heavy-duty tines
• Drive System: Gear-driven for durability and consistent power transfer
• Weight: 1,557 lbs
• Application: Designed for seedbed preparation, soil conditioning, and breaking up hard or rocky ground

Ideal For

• Preparing seedbeds in tough, compacted, or rocky soils
• Large-scale tilling operations requiring deep soil penetration
• Farms using 75–125 HP tractors with Category 2 or 3 hitches
• Operators needing adjustable rotor speed for different soil conditions
• Users who want durable, gear-driven performance for long-term reliability
• Anyone ready to turn hard ground into workable soil without making multiple frustrating passes
