IronCraft HD 15Ft Pull Type Rotary Cutter w/Aircraft Tires

IronCraft HD 15Ft Pull Type Rotary Cutter w/Aircraft Tires & LED Lights

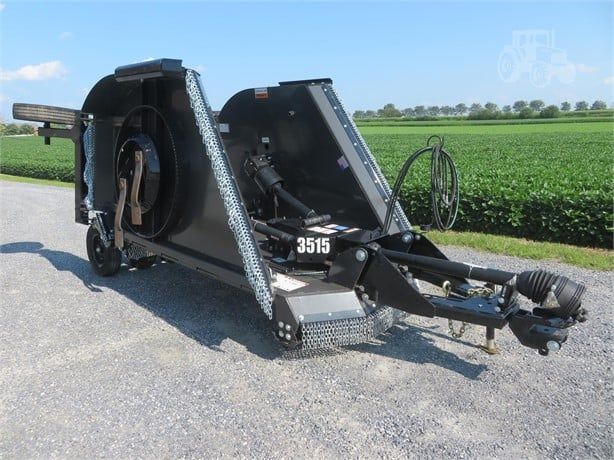

The 3515-LAT6-LEDK IronCraft HD 15-Ft Pull Type Rotary Cutter is a heavy-duty flex-wing rotary cutter designed for demanding mowing conditions across large pastures, fields, and right-of-ways. Built with a reinforced center deck structure and heavy hinge protection, it delivers dependable durability while maintaining a smooth, consistent cut. The hydraulic wing fold system, aircraft tires, and LED lighting package provide excellent transport stability and visibility, while balanced blade pans and deck protection rings help extend gearbox life and improve cutting performance. With its rugged design and wide 15-foot coverage, the 3515 is built to handle serious mowing work without slowing down.

Country of Origin
Made in the USA

Key Features / Specifications

• Model / Part Number: 3515-LAT6-LEDK
• Brand: IronCraft
• Product Family: 3515 Series
• Product Type: Heavy-duty flex-wing pull-type rotary cutter
• Working Width: 180" (15 feet)
• Overall Width: 188"
• Transport Width: 90"
• Minimum PTO Horsepower: 60 HP
• PTO Speed: 540 or 1000 RPM compatible
• Cutting Capacity: Up to 3-1/2" diameter material
• Cutting Height Range: 2" – 15" adjustable
• Deck Thickness: 10-gauge steel
• Side Bands: 1/4" x 13-1/2" heavy-duty side bands
• Blade Type: 1/2" x 4" uplift blades
• Blade Holder: Round pan design
• Blade Pan Construction: Heavy 7-gauge press-formed pans for balance and durability
• Blade Overlap: 6"
• Gearbox Rating: 235 HP center gearbox
• Outboard Gearbox Rating: 190 HP
• Driveline Protection: Slip clutch
• PTO Drive Shaft: ASAE Category 6
• Wing Drive PTO: ASAE Category 4
• Wing Flex Range: 22° down to 100° up
• Suspension: Two heavy-duty springs positioned on the center tailwheel axle
• Wheel Type: Aircraft tires
• Lighting: LED lighting kit for road transport
• Skid Shoes: Replaceable
• Hitch Type: Swivel pivot self-leveling hitch
• Deck Protection: Deck rings standard to prevent structural damage from bent blades
• Guarding: Single-row chain guards standard
• Safety Feature: Safety tow chain included
• Weight: Approx. 5,600 lbs
• Tongue Weight: Approx. 1,900 lbs
• Blade Tip Speed: 17,135 FPM
• Gearbox Warranty: 5-year limited warranty

Ideal For

• Large pasture and field mowing
• Roadside and right-of-way vegetation management
• Brush control up to 3-1/2" diameter
• Farms and land managers needing wide 15-foot mowing coverage
• Operators who prefer a cutter that handles rough ground and thick grass like it was built for it—because it was
