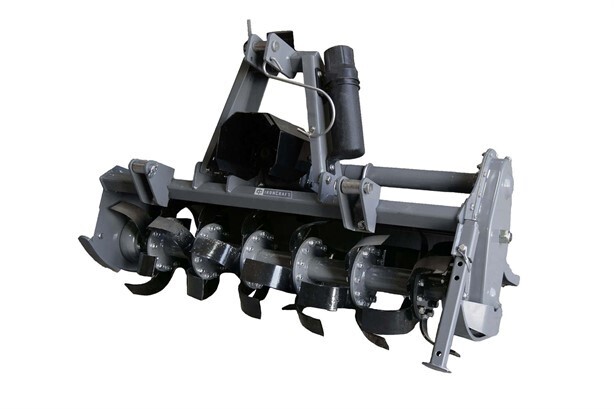

IronCraft Heavy Duty 5Ft Gear Drive REVERSE Rotation Rotary Tiller

IronCraft Heavy Duty 5Ft Gear Drive REVERSE Rotation Rotary Tiller

The IronCraft UH-60-R Heavy Duty Reverse Rotation Rotary Tiller is a serious soil-working machine built for demanding conditions where lighter tillers wave the white flag. Designed with a reverse rotation system, this unit pulls material down into the tines for deeper, finer soil breakdown, making it ideal for tough, compacted, or rocky ground. With a heavy-duty gear drive, 860 lb build, and a 65" working width, it’s made to pair with mid-size tractors and handle real field prep—not just scratch the surface and call it a day.

Country of Origin
Made in India

Key Features / Specifications

• Model / Part Number: UH-60-R
• Brand / Series: IronCraft UH Series (Heavy Duty)
• Product Type: 3-Point Gear Drive Rotary Tiller (Reverse Rotation)
• Working Width: 65"
• Max Working Depth: 7½"
• Rotation Type: Reverse rotation (improves soil pulverization and penetration)
• PTO Speed: 540 RPM
• Tractor Compatibility: Category I & II Hitch
• PTO HP Requirement: 50 – 65 PTO HP
• Minimum HP (Operational Range): 40 – 55 HP
• Drive System: Heavy-duty gear drive (no chains to babysit)
• Rotor Diameter: 3½"
• Rotor Swing Diameter: 19"
• Flanges on Rotor: 7
• Tines per Flange: 6
• Total Tines: 42
• Weight: 860 lbs (keeps it planted and working, not bouncing around)
• Application: Heavy-duty tillage in compacted, rocky, or difficult soils

Ideal For

• Breaking new ground, food plots, and field prep in tough soil conditions
• Operators running 50–65 PTO HP tractors needing a serious tiller
• Jobs where reverse rotation provides finer soil finish and deeper mixing
• Farms and properties dealing with rocky, compacted, or heavily worked soil
• Anyone who wants a tiller that digs in instead of just spinning and hoping for the best
