Ironcraft JD Industrial Root Grapple, 6-1/2Ft - Pioneer Couplers

Ironcraft JD Industrial Root Grapple, 78" - Pioneer Couplers

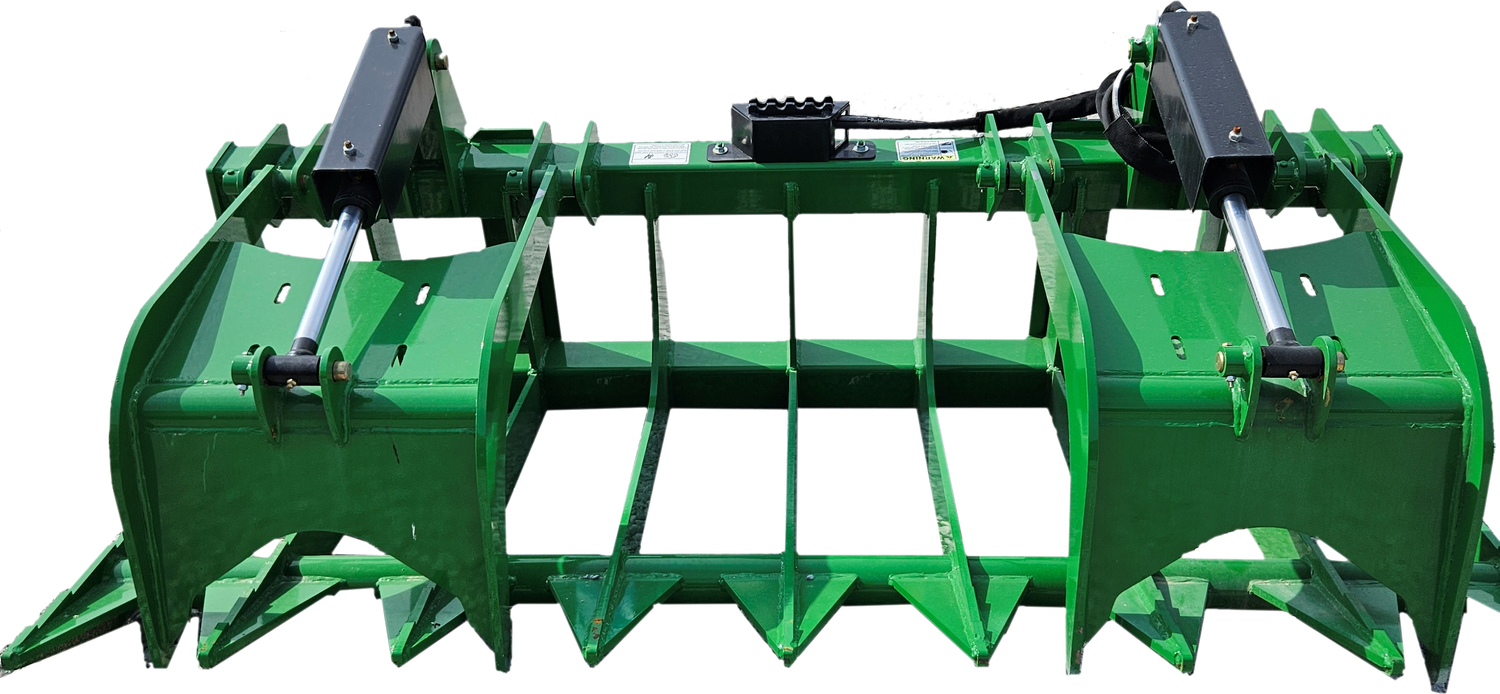

The JDHDG78 IronCraft Heavy Duty Root Grapple is a versatile, contractor-ready attachment built to handle logs, brush, rocks, and storm debris without backing down. Designed with independent cylinder operation and rugged steel construction, this grapple gives you the control and durability needed for uneven loads and tough cleanup jobs. With protected hydraulic lines and reinforced tubing, it’s built to last—because replacing hoses in the middle of a job is never part of the plan.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: HDRG78
• Product Family: Heavy Duty Root Grapple
• Product Type: Root grapple with Pioneer couplers
• Working Width: 78" (6-1/2 ft)
• Recommended Machine Size: 45–65 HP
• Weight: 680 lbs
• Construction:
  • 1/2" steel plate (top and bottom)
  • 3" square tubing frame
• Hydraulics:
  • Dual 2" bore x 10" stroke cylinders
  • Independently operated cylinders for handling uneven loads
• Hydraulic Protection: Lines routed inside the frame to prevent damage
• Couplers: Pioneer hydraulic couplers included
• Pivot Points: Grease fittings at all pivot locations
• Additional Protection: Rod covers included (standard)
• Design Advantage: Built to exceed skid steer lifting capacity and withstand demanding applications
• Tine Options: Optional spacer tines available

Ideal For

• Tree service and land clearing operations handling logs and heavy brush
• Contractors preparing home sites or cleaning up storm damage
• Moving rocks, debris, and uneven loads with better control
• Skid steer operators needing a durable, lower-weight heavy-duty grapple
• Anyone who wants a grapple that grips tight, works hard, and doesn’t leave you fixing hoses at the worst possible time
