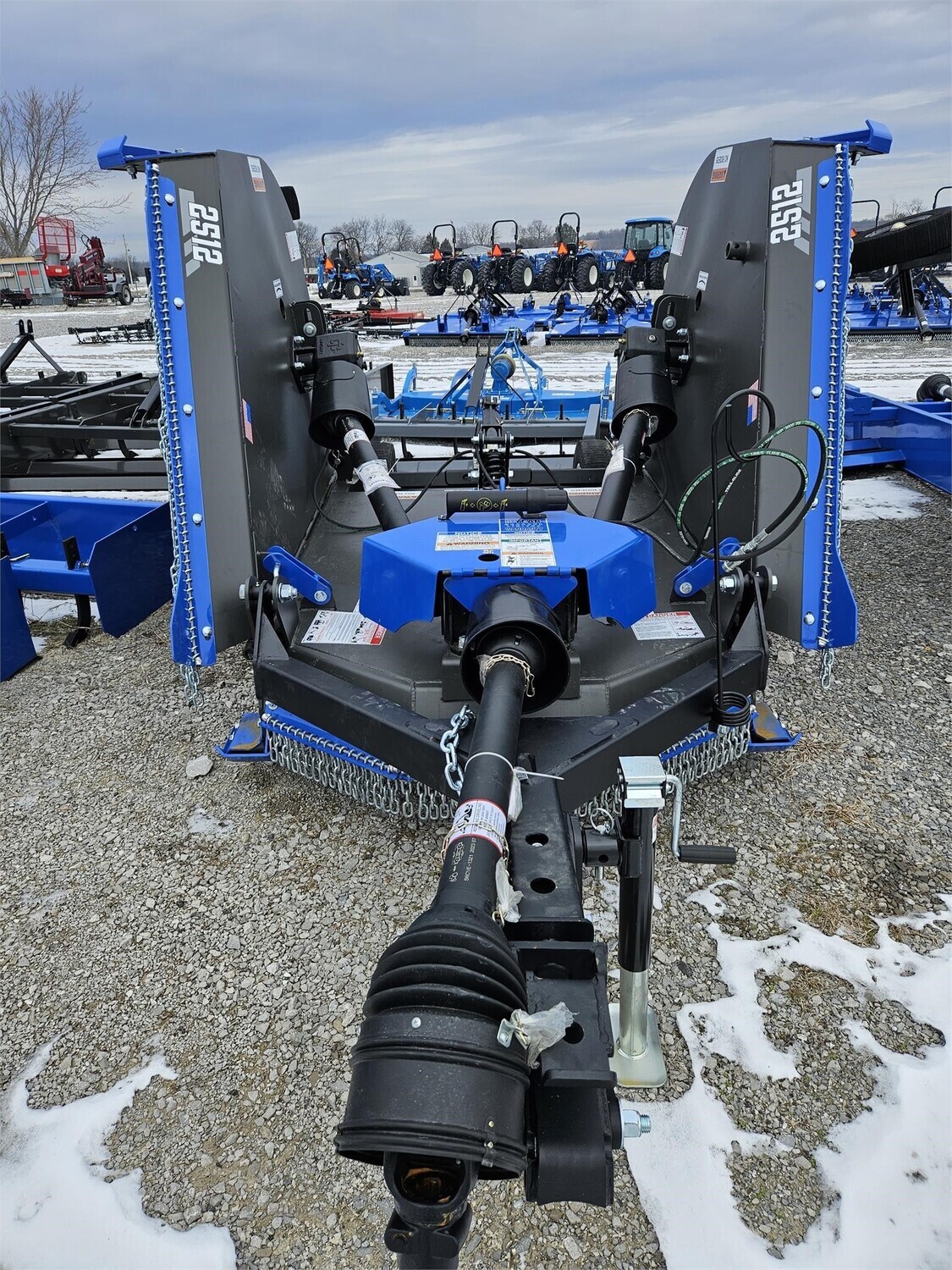

IronCraft Pull-Type 12Ft Flex-Wing Rotary Cutter

IronCraft Pull-Type 12Ft Flex-Wing Rotary Cutter

The 2512-B IronCraft Pull-Type 12-Ft Flex-Wing Rotary Cutter is a compact, efficient flex-wing mower designed for tractors that need wide cutting coverage without requiring high horsepower. Built with a smooth-top 10-gauge steel deck and spring suspension system, the 2512 delivers dependable mowing performance across uneven terrain while minimizing shock to the machine. With the ability to cut grass, weeds, and light brush up to 2" in diameter, it’s an excellent option for pasture maintenance and property management. Requiring only 35 PTO horsepower and a single hydraulic outlet, this cutter makes flex-wing mowing accessible for compact and mid-size tractors.

Country of Origin
Made in the USA

Key Features / Specifications

• Model / Part Number: 2512-B
• Brand: IronCraft
• Product Family: 2512 Series
• Product Type: Pull-type flex-wing rotary cutter
• Working Width: 144" (12 feet)
• Overall Width: 151"
• Overall Length: 158"
• Minimum PTO Horsepower: 35 HP
• PTO Speed: 540 RPM
• Cutting Capacity: Up to 2" diameter material
• Cutting Height Range: 1-1/2" – 12" adjustable
• Deck Construction: 10-gauge smooth-top steel deck
• Deck Height: 11"
• Side Bands: 3/16"
• Hinge Rods: 1"
• Suspension: Single spring suspension system
• Blade Type: 1/2" x 3" uplift blades
• Blade Holder: 3/16" formed plate with 3/4" x 2" blade bar
• Blade Overlap: 6"
• Gearbox Rating: 175 HP center gearbox
• Outboard Gearbox Rating: 75 HP
• Driveline Protection: Slip clutch
• PTO Drive Shaft: ASAE Category 5 constant velocity
• Wing Drive PTO: ASAE Category 4
• Wheel Type: Laminated or aircraft tires
• Hitch Type: Swivel clevis hitch
• Skid Shoes: Replaceable
• Tongue Weight: Approx. 759 lbs
• Machine Weight: Approx. 2,630 lbs
• Blade Tip Speed: 15,657 FPM
• Guarding: Single-row chain guards standard
• Safety Feature: Safety tow chain included
• Gearbox Warranty: 5-year limited warranty

Ideal For

• Compact and mid-size tractors needing flex-wing mowing capability
• Pasture and property maintenance
• Grass, weeds, and light brush control
• Farms needing wide mowing coverage with lower horsepower requirements
• Operators who like covering 12 feet at a time instead of mowing the same pasture in tiny laps
