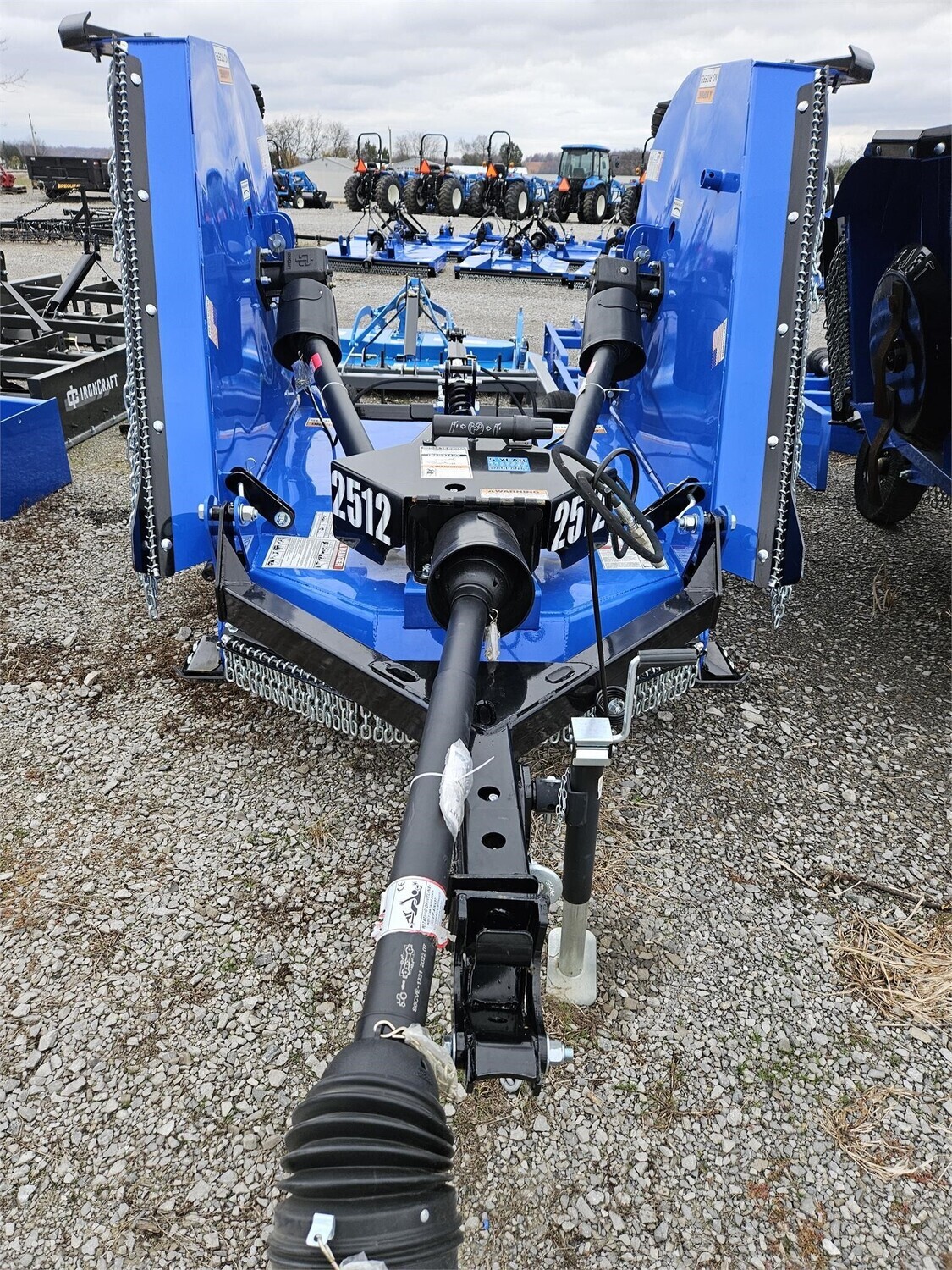

IronCraft Pull-Type 12Ft Flex-Wing Rotary Cutter

IronCraft Pull-Type 12Ft Flex-Wing Rotary Cutter w/4 Aircraft Tires

The 2512-4AT-BA IronCraft Pull-Type 12-Ft Flex-Wing Rotary Cutter is a compact yet capable flex-wing mower designed for smaller tractors that still need wide mowing coverage. Built with a smooth-top deck and spring suspension system, the 2512 delivers reliable cutting performance across uneven terrain while reducing stress on the machine. With a 12-foot cutting width and the ability to handle grass, weeds, and light brush up to 2" in diameter, it provides efficient field and pasture maintenance without requiring a large tractor. Designed for tractors with as little as 35 PTO horsepower, this cutter is an ideal solution for operators who want the versatility of a flex-wing cutter on a compact or mid-size tractor.

Country of Origin
Made in the USA

Key Features / Specifications

• Model / Part Number: 2512-4AT-BA
• Brand: IronCraft
• Product Family: 2512 Series
• Product Type: Pull-type flex-wing rotary cutter
• Working Width: 144" (12 feet)
• Overall Width: 151"
• Overall Length: 158"
• Minimum PTO Horsepower: 35 HP
• PTO Speed: 540 RPM
• Cutting Capacity: Up to 2" diameter material
• Cutting Height Range: 1-1/2" – 12" adjustable
• Deck Construction: 10-gauge smooth-top steel deck
• Deck Height: 11"
• Side Bands: 3/16"
• Hinge Rods: 1"
• Suspension: Single spring suspension system
• Blade System: 1/2" x 3" blades with lift
• Blade Holder: 3/16" formed plate with 3/4" x 2" blade bar
• Blade Overlap: 6"
• Gearbox Rating: 175 HP center gearbox
• Outboard Gearbox Rating: 75 HP
• Driveline Protection: Slip clutch protection
• PTO Drive Shaft: ASAE Category 5 constant velocity
• Wing Drive PTO: ASAE Category 4
• Wheel Type: 4 aircraft tires
• Hitch Type: Swivel clevis hitch
• Skid Shoes: Replaceable
• Tongue Weight: 759 lbs
• Machine Weight: Approx. 2,630 lbs
• Blade Tip Speed: 15,657 FPM
• Guarding: Single-row chain guards standard
• Safety Feature: Safety tow chain included
• Gearbox Warranty: 5-year limited warranty

Ideal For

• Compact and mid-size tractor owners needing wide mowing coverage
• Pasture and property maintenance
• Grass, weeds, and light brush control
• Farms wanting flex-wing mowing with lower horsepower requirements
• Operators who like the idea of cutting 12 feet at a time without needing a giant tractor to do it
