Jason Industrial 100R19 Hydraulic Hose, 1" 4000Psi

Jason Industrial 100R19 Hydraulic Hose, 1" 4000Psi

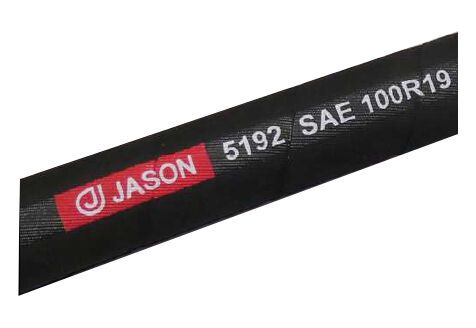

The 5192X16 Jason Industrial 100R19 Hydraulic Hose is a heavy-duty, high-pressure hydraulic hose rated for 4000 PSI working pressure and engineered for demanding equipment environments. Built with a synthetic rubber tube, two high-tensile steel wire braids, and an extra abrasion-resistant Dreamshield® synthetic rubber cover (MSHA approved), it’s designed to handle harsh conditions, tight routing, and high-pressure hydraulic lines across construction, farm, marine, and industrial equipment while meeting or exceeding SAE 100R19.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 5192X16
• Brand: Jason Industrial
• Type: Hydraulic hose (meets or exceeds SAE 100R19)
• Inside Diameter (I.D.): 1" (25.4 mm)
• Outside Diameter (O.D.): 1.40" (35.5 mm)
• Working Pressure: 4000 PSI (280 bar)
• Burst Pressure: 16000 PSI (1120 bar)
• Minimum Bend Radius (MBR): 5.9" (150 mm)
• Weight: 0.80 lb/ft (1.20 kg/m)
• Standard Length: 200 ft (61.0 m)
• Temperature Range: -40 to +212°F (-40 to +100°C)
• Tube: Synthetic rubber
• Reinforcement: Two wire braids of high-tensile steel with protective coating
• Cover: Dreamshield® synthetic rubber — oil, weather & extra abrasion resistant, MSHA approved
• Compatible Couplings: 12 / JB12 Series
• Application: High-pressure hydraulic lines for off-road construction equipment, machine tools, farm equipment, and marine equipment

Ideal For

• High-pressure hydraulic systems requiring 4000 PSI working pressure
• Off-road construction and earthmoving equipment
• Agricultural and farm machinery exposed to oil, weather, and abrasion
• Marine and industrial hydraulic applications
• Installations needing tight routing with a 5.9" minimum bend radius
• Users seeking SAE 100R19-compliant hose with MSHA-approved abrasion resistance
