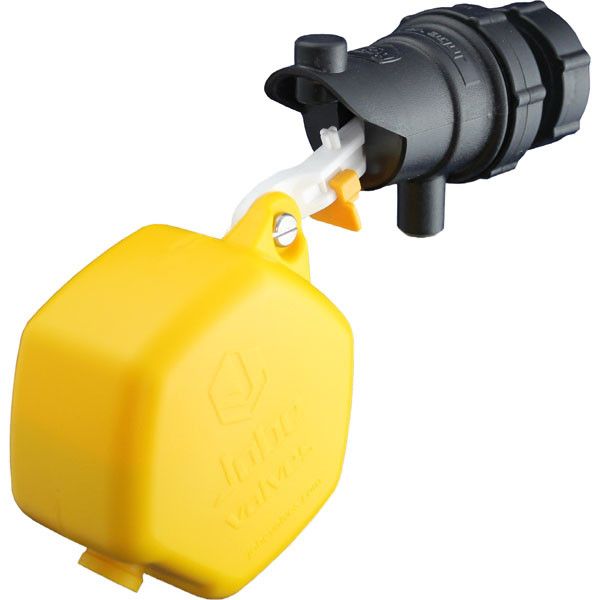

Jobe J-TPVC0075D Topaz Compact Float Valve, 3/4"

Jobe J-TPVC0075D Topaz Compact Float Valve, 3/4"

The Jobe J-TPVC0075D Topaz Compact Float Valve (3/4") is a space-saving, float-operated automatic fill valve designed to maintain consistent water levels in troughs, tanks, and cisterns where room is limited. Configured for above-water mounting only, it uses a compact weighted float to operate a pilot valve that controls the main diaphragm valve for a positive on/off shutoff. Built for dependable performance with pump-supplied water, it offers high flow, corrosion-resistant construction, and a slow shut-down to help minimize water hammer.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: J-TPVC0075D
• Brand / Series: Jobe Topaz Compact
• Product Type: Compact float-operated automatic fill valve
• Connection Size: 3/4 in
• Mounting Configuration: Above-water mounting only
• Operation: Compact weighted float operates a pilot valve, which controls the main diaphragm valve
• Shutoff Style: Positive on/off
• Flow / Build: High flow with compact, robust construction
• Materials: Corrosion resistant materials
• Water Hammer Reduction: Shuts down slowly to minimize water hammer
• Water Level Differential: 20–60 mm (3/4" to 2-1/2") differential (increases as inlet pressure increases)
• Pressure Rating: 5–150 PSI (0.3–10 Bar)
• Adjustability: Float position easily adjustable with no tools
• Lock-Off: Integrated switch to lock in OFF position
• Freeze Protection Port: Port to connect Frostpro Anti Freeze Device
• Serviceability: Detach valve seal access system for quick seal access

Ideal For

• Automatic filling of animal drinking troughs where space is limited
• Maintaining water level in storage tanks and cisterns
• Pump-supplied water setups needing a positive on/off float valve
• Installations where reducing water hammer is important
• Applications like irrigation, high-pressure cleaning systems, and A/C water systems needing reliable level control
