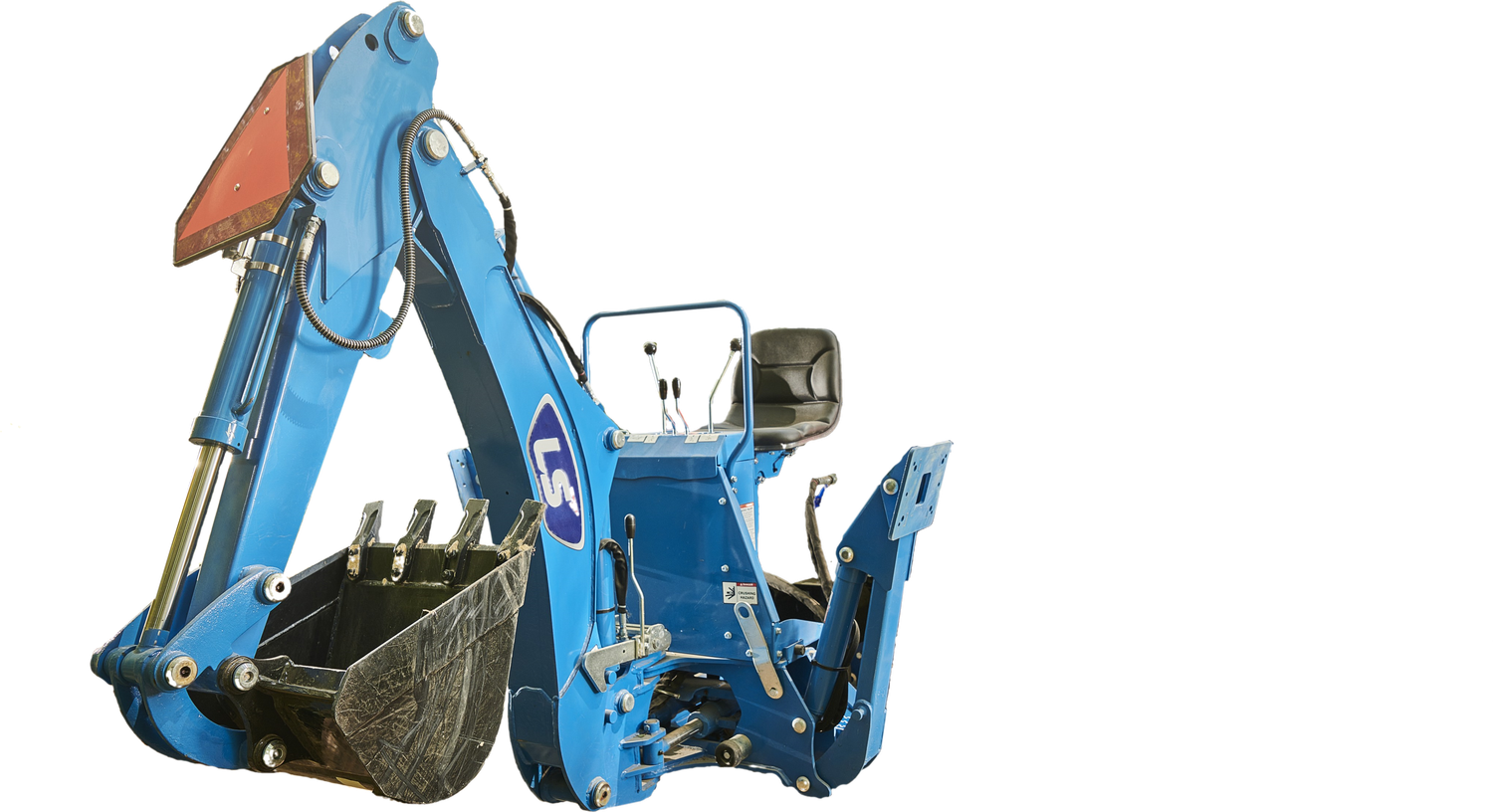

LB1300 Backhoe Assy for MT225s Tractor

LS Backhoe Assy for MT225s Tractor

The LS LB1300 Backhoe is a heavy-duty digging attachment built specifically for the LS MT225S tractor, delivering serious excavation capability in a compact tractor setup. With an impressive 84.9" digging depth, a wide 170° swing arc, and a powerful 3,013 lbs of bucket digging force, this backhoe is ready to take on tougher jobs like trenching, footings, and deeper excavation. Smooth operation, strong reach, and high bucket rotation give you the control you need—because digging is a lot easier when the machine does the hard part.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: LB1300
• Compatibility: LS MT225S tractor
• Product Type: Tractor-mounted backhoe attachment
• Digging Depth: 84.9"
• Reach from Swing Pivot: 113.7"
• Loading Height: 64.7"
• Swing Arc: 170°
• Bucket Rotation: 177°
• Bucket Digging Force: 3,013 lbs
• Transport Height: 73.4"
• Stabilizer Spread (Down): 57.3"
• Stabilizer Spread (Up): 65.5"

Ideal For

• Deeper trenching, excavation, and footing work where extra reach and power matter
• MT225S owners wanting to maximize their tractor’s digging capability
• Jobs requiring strong breakout force and extended swing range
• Operators who need precision and control for more demanding tasks
• Anyone ready to trade a shovel for 3,013 lbs of hydraulic persuasion
