Leeson Electric Motor, 1/3 HP

Leeson Electric Motor, 1/3 HP

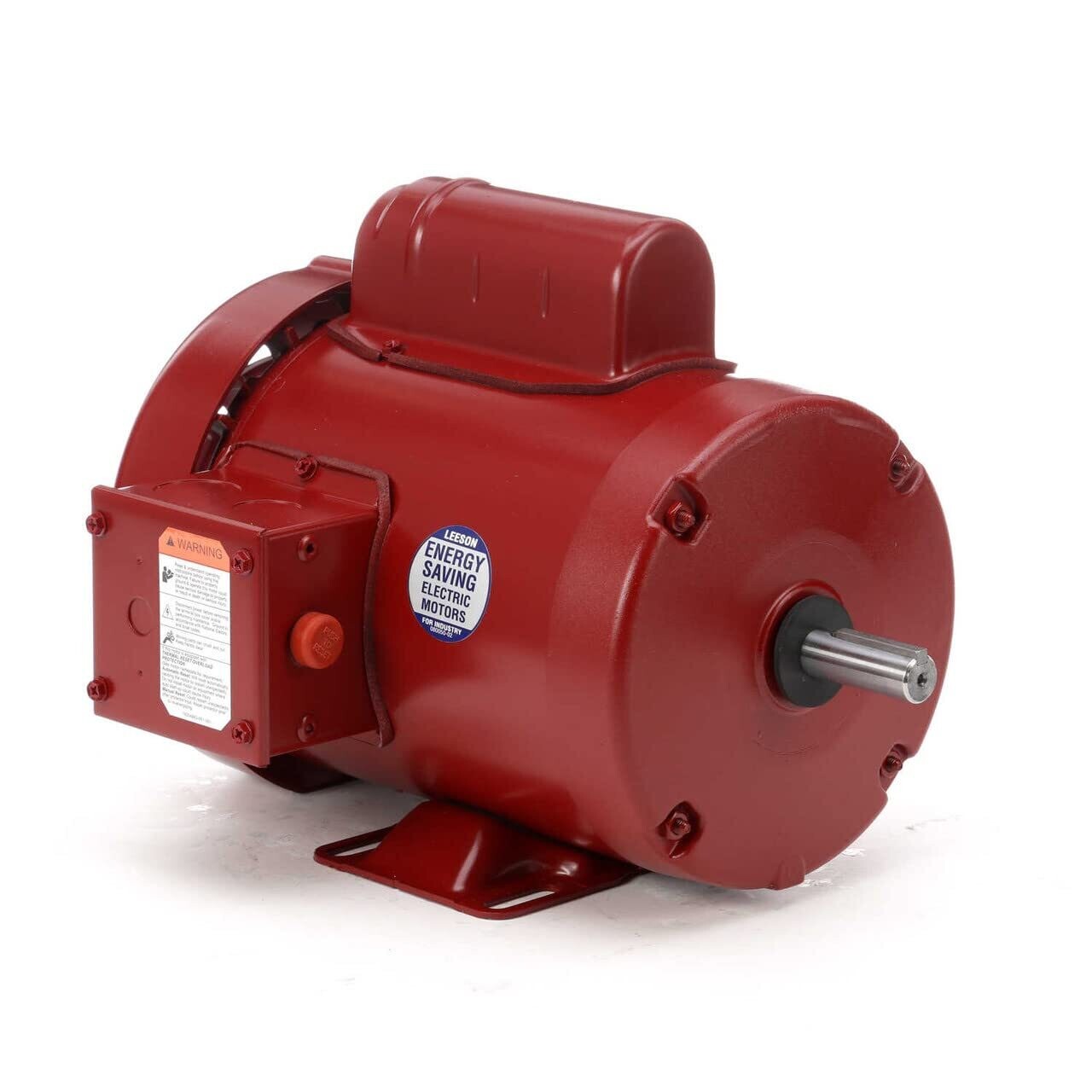

The 6113256 Leeson Electric Motor (1/3 HP, 1725 RPM) is a high-torque farm duty single-phase motor built for reliable performance in demanding environments, while still being versatile enough for many general-purpose 1725 RPM applications. With a TEFC (Totally Enclosed Fan Cooled) design, capacitor start, corrosion-resistant components, and a durable rolled steel frame, it’s designed for long service life and dependable starting under load.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Leeson
• Part Number: 6113256
• Motor Type: High Torque Farm Duty, Capacitor Start
• Horsepower: 1/3 HP
• Speed: 1725 RPM
• Phase: Single Phase
• Voltage / Frequency: 115/208-230V, 60 Hz
• Amps: 6.4 / 3.2 A
• Rotation: Electrically reversible
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame: NEMA 56
• Mounting: Flat rigid base mount
• Shaft Size: 5/8" diameter x 1-7/8" length
• Overall Length: 10.81"
• Service Factor: 1.15
• Insulation Class: Class B
• Bearings: Double sealed ball bearings
• Protection: Manual overload protection
• Construction: Durable rolled steel frame, corrosion-resistant parts
• Junction Box: Included
• Ambient Rating: 40°C
• Certifications: UL/CSA Recognized
• Shipping Weight: 23 lb

Ideal For

• Farm-duty applications needing high starting torque and a rugged TEFC motor
• Replacement for equipment requiring a 1725 RPM, NEMA 56 frame motor
• Shops and facilities needing a dependable single-phase capacitor start motor
• Installations where corrosion resistance and sealed bearings help extend motor life
