Light Series Metric Hydraulic Fitting

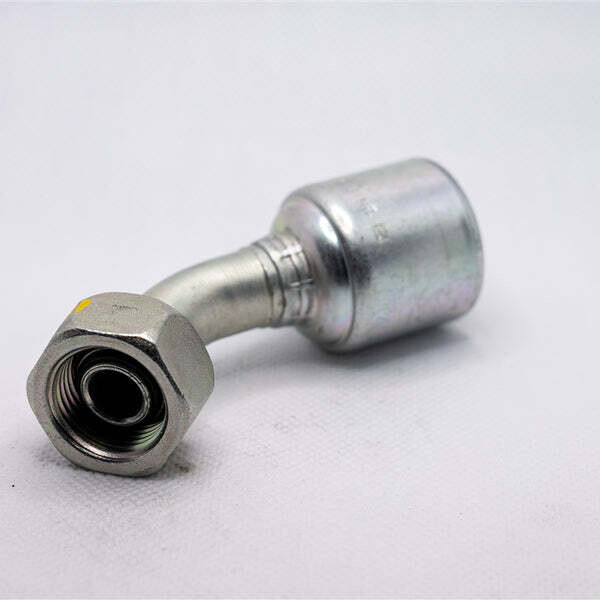

The 4G-10FDLORX45 Light Series Metric Hydraulic Fitting is a 45° hydraulic fitting designed for Light Series metric applications, paired with MegaCrimp® coupling technology to help deliver a leak-resistant, consistent crimp connection. The patented “C” insert design supports different hose constructions and wall thicknesses while distributing crimp forces evenly for a concentric seal—making inventory a little simpler and surprises a lot less likely.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 4G-10FDLORX45
• Product Type: Light Series metric hydraulic fitting (45°)
• Coupling System: MegaCrimp® with patented “C” insert for concentric sealing and compatibility across varying hose constructions/wall thickness
• Thread Size: M16 x 1.5
• Thread Pitch: 1.5
• Nut Hex Size: 19 mm
• Tube OD: 10 mm
• Hose ID: 1/4"
• Overall Length: 2.54"
• Cutoff Length: 1.51"
• Drop Length: 0.7"

Ideal For

• Metric hydraulic assemblies needing a 45° Light Series fitting
• Hose builds using 1/4" ID hose with 10 mm tube OD requirements
• Shops looking to reduce fitting/coupling complexity with MegaCrimp® “C” insert compatibility across hose constructions
• Applications where a consistent crimp and leak-resistant seal are the whole point (because “it only seeps a little” is not a design spec)
