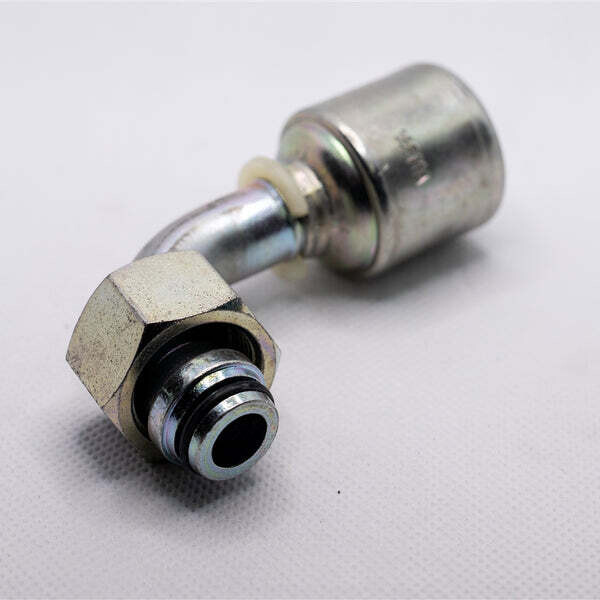

Light Series Metric Hydraulic Fitting

The 4G-6FDLORX90 Light Series Metric Hydraulic Fitting is a 90° metric female DIN Light Series coupling engineered for dependable, leak-resistant performance in crimped hydraulic hose assemblies—especially where hose routing requires a compact right-angle turn. Built with the MegaCrimp® system’s patented “C” insert, it helps form a concentric, leak-proof seal by evenly distributing crimping forces while accommodating different hose constructions and wall thicknesses, reducing inventory needs by allowing one size to fit multiple hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-6FDLORX90
• Brand / Series: MegaCrimp®
• Product Type: Light Series metric hydraulic fitting — Female DIN Light Series 90°
• Hose ID: 1/4 in.
• Thread Size: M12 x 1.5
• Thread Pitch: 1.5
• Tube OD: 6 mm
• Nut Hex Size: 14 mm
• Overall Length: 2.27 in.
• Drop Length: 1.38 in.
• Cutoff Length: 1.24 in.
• Seal / Design Feature: Patented “C” insert for even crimp-force distribution and concentric sealing
• Compatibility Benefit: One size accommodates multiple hose ODs on one- and two-wire hoses

Ideal For

• DIN Light Series systems needing a 90° female metric connection for tighter routing
• Crimped hose builds where leak control and consistent sealing are critical
• Shops simplifying stocking across varying hose constructions/wall thicknesses
• Equipment maintenance and repairs requiring reliable hydraulic connections
