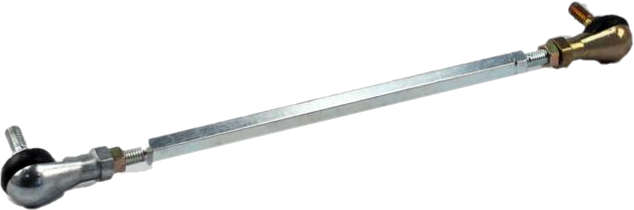

LS 40297693 Rod Assy-G292
SKU 40297693
$79.50
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS 40297693 Rod Assy-G292
Product Details
UPC: 40297693
Weight: 1.20 lbs
LS 40297693 Rod Assy-G292

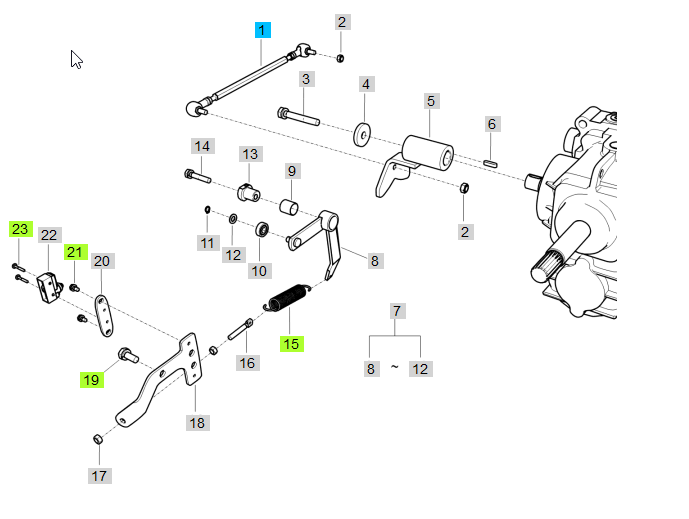

| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40297693 | ROD ASSY-G292 | 1 | ||||||
| 2 | 40027836 | NUT-LOCK-TRG870 | 2 | ||||||
| 3 | 40028956 | BOLT-HEX W/WS-S154107033 | M10XP1.25X70L | 1 | |||||
| 4 | 40012971 | WASHER-A0661122 | 1 | ||||||
| 5 | 40012242 | CAM-HST-TRG292 | 1 | ||||||
| 6 | 40097739 | KRY-SUNK-S405052010 | 5X6X20L | 1 | |||||
| 7 | 40013018 | SUB-NEUTRAL ARM ASSY-G292 | 1 | ||||||
| 8 | 40011442 | ARM-NEUTRAL-TRG292 | 1 | ||||||
| 9 | 40012935 | BUSHING-A0677625 | #76 | 1 | |||||
| 10 | 40012922 | BEARING-BALL-A0860002 | #60002 | 1 | |||||
| 11 | 40029258 | RING-SNAP-S810010001 | D10 | 1 | |||||
| 12 | 40028158 | WASHER-PLN-S363100013 | O.D18XI.D10.5X2T | 1 | |||||
| 13 | 40009880 | SHAFT-CONTROL-TRG292 | 25.5L | 1 | |||||
| 14 | 40028954 | BOLT-HEX W/WS-S154105533 | M10XP1.25X55L | 1 | |||||
| 15 | E | 40416612 | SPRING-NEUTRAL-TRG292 | D3.0XD22X115L | 1 | ||||
| 16 | 40012133 | BOLT-ADJUST-TRG260 | OD8 | 1 | |||||
| 17 | 40029040 | NUT-HEX SMALL-S313080013 | M8XP1.25 | 2 | |||||
| 18 | 40011300 | BRACKET-SPRING-TRG292 | 4.5T | 1 | |||||
| 19 | 40028948 | BOLT-HEX W/WS-S154102533 | M10XP1.25X25L | 1 | |||||
| 20 | 40009454 | PLATE-TRG292 | 4.5T | 1 | |||||
| 21 | 40028909 | BOLT-HEX W/WS-S153061233 | M6XP1X12L | 2 | |||||
| 22 | 40007150 | SWITCH-NEUTRAL(MICRO)-TRG750 | 125VAC/15A NO OMRON Z-15GK55-B | 1 | |||||
| 23 | 40028709 | SCREW-W/SP&PL WS-S227403011 | M4X0.7PX30L | 2 | 40028692 |
