LS Bolt,Hex-Ht-Tsl
SKU 40228621
$1.39
Sold out
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Bolt,Hex-Ht-Tsl
Product Details
Weight: 0.14 lbs
LS Bolt,Hex-Ht-Tsl

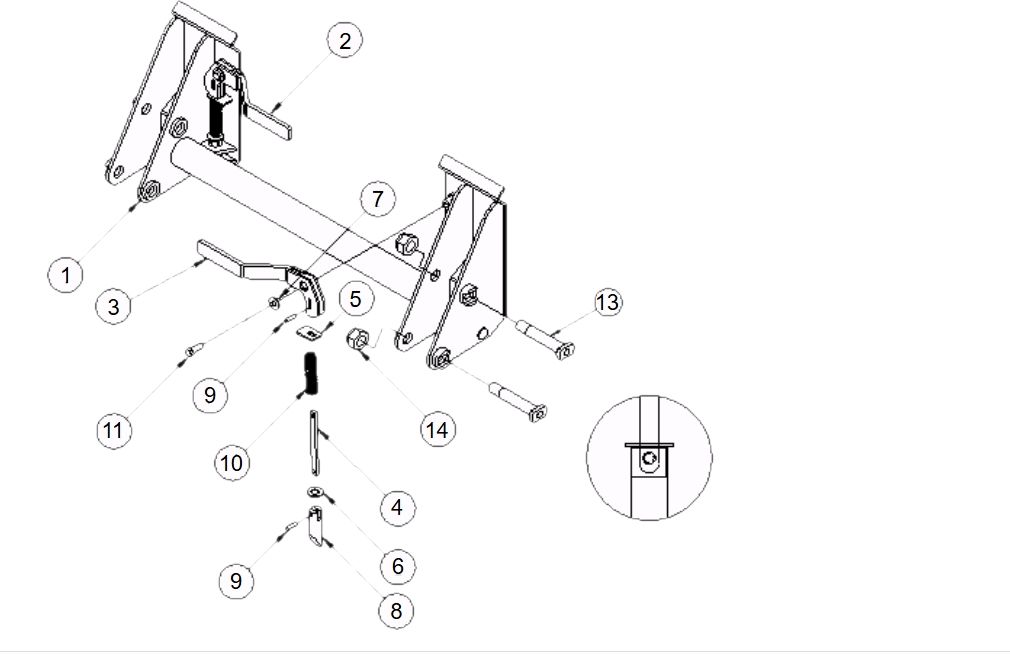

#11 in the diagram
| Ref. | Part Number | Description | Qty. | Notes |
|---|---|---|---|---|
| 0 | 40286964 | Quick Attach Assembly, No. 1–12 | 1 | Includes items 1–12 |
| 1 | 40517623 | Quick Attach Weld Assembly | 1 | 201214340– |
| 1 | 40272719 | Quick Attach Weld Assembly | 1 | Gloss paint applied: FL78AD0297 |
| 2 | 40286958 | Handle – LH | 1 | |
| 3 | 40286959 | Handle – RH | 1 | |
| 4 | 40230849 | Link Pin | 2 | |
| 5 | 40230850 | Guide Plate | 2 | |
| 6 | 40230851 | Washer #1 | 2 | |
| 7 | 40230852 | Washer #2 | 2 | |
| 8 | 40230853 | Pin, Ø31.5 × 112 mm Long | 2 | |
| 9 | 40230615 | Spring Pin, Ø10 × 30 mm Long | 4 | |
| 10 | 40230854 | Spring, 20 mm ID × 130 mm Long | 2 | |
| 11 | 40228621 | Hex Bolt – HT, M14 × 2.0P × 35 mm Long | 2 | |
| 12 | 40228643 | Spring Washer, M14 | 2 | |
| 13 | 40335778 | Bobcat-Style Bucket Weld Assembly, 78" | 1 | Effective date: 2015-11-02. Gloss paint applied: FL78AD0297 |
| 13 | 40286949 | Bobcat-Style Bucket Weld Assembly, 78" | 1 | |
| 14 | 40230616 | Pin, Ø25 × 138 mm Long | 4 | |
| 15 | 40228633 | Self-Locking Nut, M24 × 1.5P | 4 | |
| 16 | 40229894 | Hex Bolt, M10 × 1.5P × 35 mm Long | 2 | |
| 17 | 40228634 | Self-Locking Nut, M10 × 1.5P | 2 |
