LS Bolt-Hex-Tsl 18x2.50x60mm
SKU 40230605
$3.89
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Bolt-Hex-Tsl 18x2.50x60mm
Product Details
Weight: 0.18 lbs
LS Bolt-Hex-Tsl 18x2.50x60mm

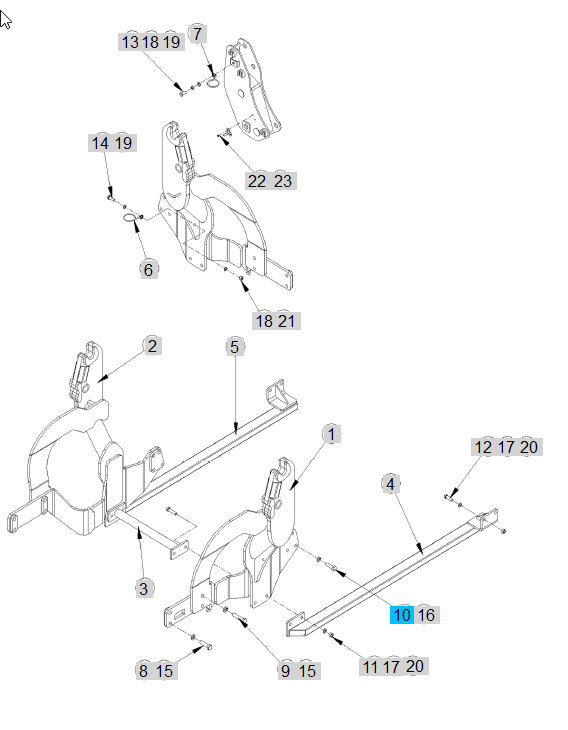

| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40350947 | MOUNTING FRAME-LH | 1 | ||||||
| 1 | 40356514 | MOUNTING FRAME-LH | 1 | (2016.11.07~ ) | |||||
| 1 | 40364719 | MOUNTING FRAME-LH | 1 | (2017.02.15~ ) | |||||
| 2 | 40350948 | MOUNTING FRAME-RH | 1 | ||||||
| 2 | 40356515 | MOUNTING FRAME-RH | 1 | (2016.11.07~ ) | |||||
| 2 | 40364720 | MOUNTING FRAME-RH | 1 | (2017.02.15~ ) | |||||
| 3 | 40350949 | CROSS BAR | 1 | ||||||
| 4 | 40340715 | REAR FRAME-LH | 1 | ||||||
| 5 | 40340716 | REAR FRAME-RH | 1 | ||||||
| 6 | 40323525 | HOSE GUIDE | 1 | ||||||
| 7 | 40335743 | HOSE GUIDE-1 | 1 | ||||||
| 8 | 40230894 | HEX.BOLT-HT, M20-2.5P 70L | 4 | ||||||
| 9 | 40343504 | HEX.BOLT-HT, M20-2.5P 90L | 4 | ||||||
| 10 | 40230605 | BOLT-HEX. M18-1.5P 60L | 6 | ||||||
| 10 | 40230605 | BOLT-HEX. M18-1.5P 60L | 8 | (2016.11.07~ ) | |||||
| 11 | 40305378 | HEX.BOLT-HT, M16-2.0P 65L | 4 | ||||||
| 12 | 40228626 | BOLT-HEX. M16-2.0P 50L | 4 | ||||||
| 13 | 40320316 | HEX.BOLT-HT,M14-2.0P 30L | 1 | ||||||
| 13 | 40294064 | HEX. BOLT, M14-2.0P 25L | 1 | (2017.02.24~ ) | |||||
| 14 | 40264168 | HEX.BOLT-HT,M14-2.0P 50L | 1 | ||||||
| 15 | 40228645 | WASHER-SPRING M20 | 8 | ||||||
| 16 | 40230613 | WASHER-SPRING M18 | 6 | ||||||
| 16 | 40230613 | WASHER-SPRING M18 | 8 | (2016.11.07~ ) | |||||
| 17 | 40228644 | WASHER-SPRING M16 | 8 | ||||||
| 18 | 40228643 | WASHER-SPRING, M14 | 2 | ||||||
| 19 | 40228649 | WASHER-PLAIN M14 | 2 | ||||||
| 20 | 40228638 | NUT-HEX. M16-2.0P | 8 | ||||||
| 21 | 40228637 | HEX. NUT M14-2.0P | 1 | ||||||
| 22 | 40356519 | HOSE GUIDE ROUND BAR | 1 | 2016.11.07~ | |||||
| 23 | 40356513 | BOLT-SEM'S, M8-1.25P 15L | 2 | 2016.11.07~ |
