LS Cover-Gear Case-Trg400
SKU 40188923
$93.19
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Cover-Gear Case-Trg400
Product Details
Brand: LS Tractor
Weight: 8.10 lbs

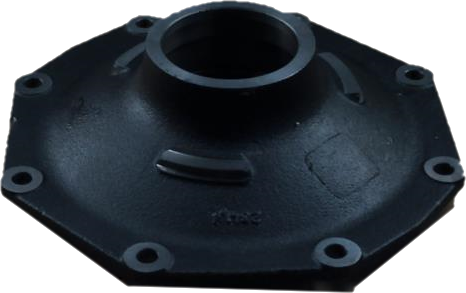

LS Cover-Gear Case-Trg400

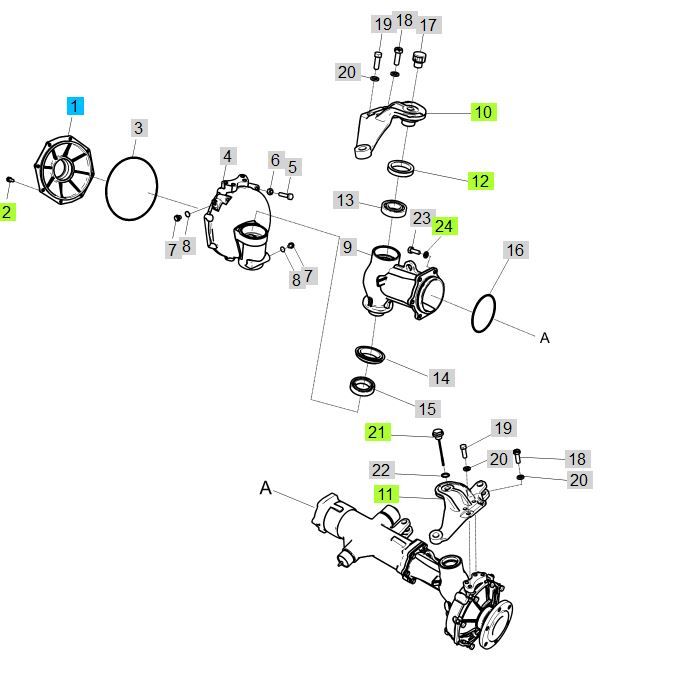

#1 in the parts diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40188923 | COVER-GEAR CASE-TRG400 | 2 | ||||||
| 2 | 40028937 | BOLT-HEX W/WS-S153102533 | M10XP1.5X25L | 16 | |||||
| 3 | 40007364 | O-RING-RUBBER-TRG970 | D3XOD231.0 | 2 | |||||
| 4 | 40188922 | CASE-GEAR-TRG400 | 2 | ||||||
| 5 | 40038168 | BOLT-HEX FT-S163104553 | M10X1.5PX45L | 2 | |||||
| 6 | 40096491 | NUT-HEX SMALL-S311100043 | M10XP1.5 | 2 | |||||
| 7 | 40188671 | BOLT-FLANGE/M10-TRG400 | M10X1.25X10L | 4 | |||||
| 8 | 40188670 | WASHER-A0667010 | M10 | 4 | |||||
| 9 | 40188921 | CASE-KING PIN-TRG400 | 2 | ||||||
| 10 | 40232576 | ARM-HOLDER RH-TRG400 | 1 | ||||||
| 11 | 40232575 | ARM-HOLDER LH-TRG400 | 1 | ||||||
| 12 | 40194978 | SEAL-OIL-TRG400 | ID52XOD72X13.5 | 2 | |||||
| 13 | 40012709 | BEARING-BALL-A0862070 | - | 8 | |||||
| 14 | 40188938 | SEAL-OIL-TRG400 | QLF578016.5 | 2 | |||||
| 15 | 40195101 | BEARING-BALL-A0860100 | #6010 | 2 | |||||
| 16 | 40117166 | O-RING-S802105010 | D104.4XW3.1 | 2 | |||||
| 17 | 40031633 | CAP-OIL-TRG400 | 1 | ||||||
| 18 | 40009921 | BOLT-REAMER-TRG970 | M12X1.75X35.0L | 4 | |||||
| 19 | 40089381 | BOLT-HEX-S105123553 | M12XP1.75X35L | 4 | |||||
| 20 | 40029551 | WASHER-SPR-S361120013 | OD21.5XID12.2X3T | 8 | |||||
| 21 | 40186673 | PLUG-OIL-TRG400 | 1 | ||||||
| 22 | 40029209 | O-RING-S801022010 | D21.8XW2.4 | 1 | |||||
| 23 | 40214684 | BOLT-HEX(M10X1.5X30)-TRG400 | M10X1.5X30 | 12 | |||||
| 24 | 40029549 | WASHER-SPR-S361100013 | O.D18.4XI.D10.2X2.5T | 12 |
