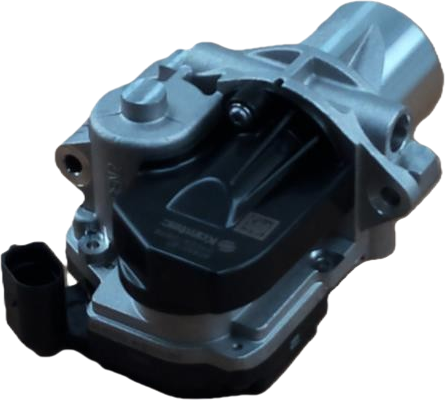

LS EGR-Valve (KAMTEC)-EGQ200
SKU 40446187
$362.29
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS EGR-Valve (KAMTEC)-EGQ200
Product Details
Weight: 3.00 lbs
LS EGR-Valve (KAMTEC)-EGQ200
For tractors 8/31/2022 and newer
If ordering an EGR valve to replace this old style, which is no longer available,
you will need an EGR Valve Retrofit Kit.
20174869 for a 4-Cylinder Engine
20174065 for a 3-Cylinder Engine

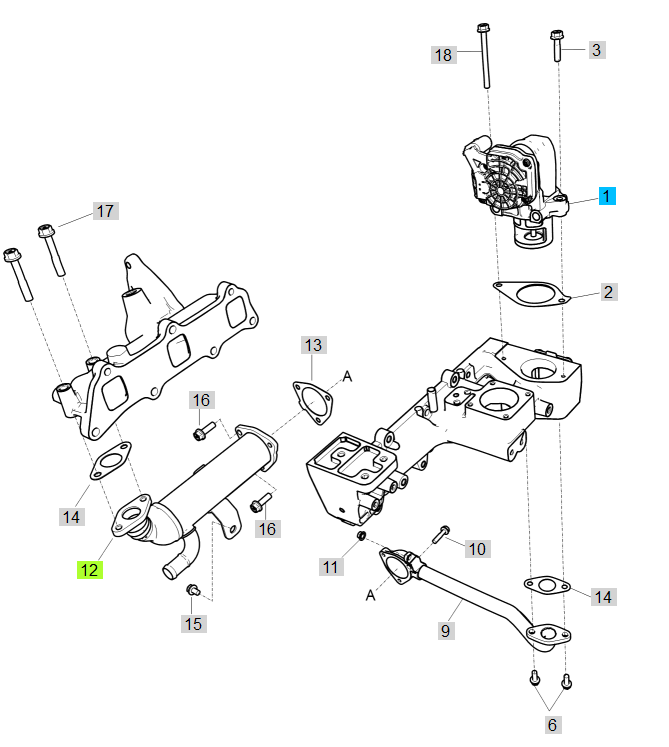

#1 in the parts diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | E | 40446187 | VALVE-EGR(KAMTEC)-EGQ200 | 110.6x79.8x135. 3 |
1 | ||||
| 2 | E | 40446190 | GASKET-EGR VALVE(KAMTEC)-EGQ20 0 |
62.0x109.0x1.5 | 1 | ||||
| 3 | E | 40345656 | BOLT-FLANGE(M6X1.0X30L)-EGQ100 | 13.5x36.0x13.5 | 1 | ||||
| 6 | 40268191 | BOLT-HEX FLANGE(M8X1.25X20L) | M8 X 1.25P X 20 | 2 | |||||
| 9 | E | 40446684 | PIPE-EGR-PASSAGE(GEN2)-EGQ200 | 419.9x78.0x97.6 | 1 | ||||
| 10 | 40268194 | BOLT-HEX FLANGE(M8X1.25X35L) | M8 X 1.25P X 35 | 1 | |||||
| 11 | 40315657 | NUT-LOCK-EGQ165 | 1 | ||||||
| 12 | 40380976 | COOLER-EGR-EGQ200 | 1 | ||||||
| 13 | 40313562 | GASKET-EGR COOLER OUT-EGQ200 | 1 | ||||||
| 14 | 40313561 | GASKET-EGR COOLER-EGQ200 | 2 | ||||||
| 15 | 40268189 | BOLT-HEX FLANGE(M8X1.25X12L) | M8 X 1.25P | 1 | |||||
| 16 | 40268192 | BOLT-HEX FLANGE | M8 X 1.25P X 25 | 2 | |||||
| 17 | 40315655 | BOLT-FLANGE-EGQ165 | M8 X 1.25P X 50 | 2 | |||||
| 18 | A | 40448084 | BOLT-FLANGE(M6X1.0X65L)-EGQ100 | 13.5x71.0x13.5 | 1 |
