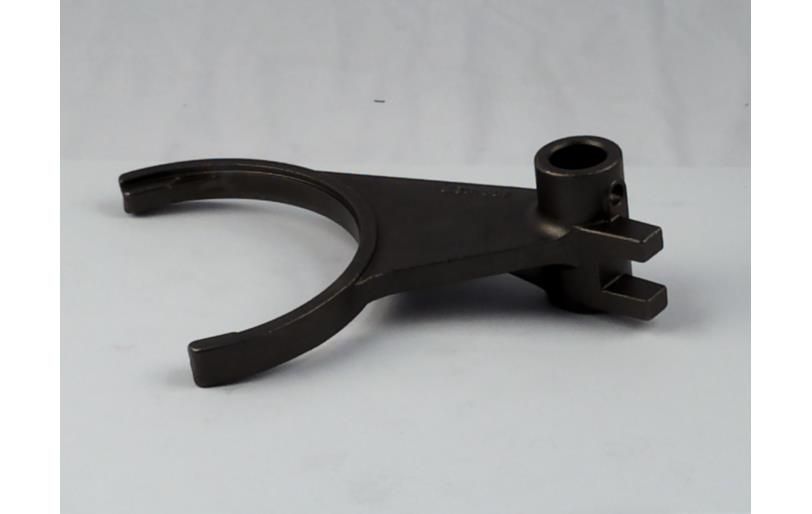

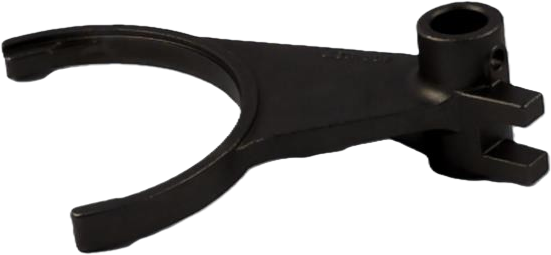

LS Fork-F/R-Trg290
SKU 40009216
$74.99
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Fork-F/R-Trg290
Product Details
UPC: 40009216
LS Fork-F/R-Trg290

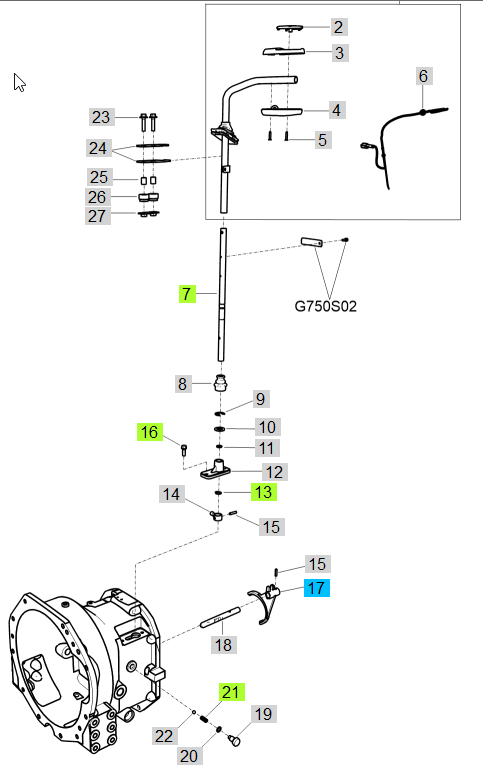

| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40436866 | LEVER ASSY-F/R(PC)-G292 | 89.4x310.7x322. 4 |
1 | |||||
| 2 | 40408495 | CAP-KNOB_F/R-TRG292 | 1 | ||||||
| 3 | 40408498 | KNOB-F/R_UPPER-TRG292 | 1 | ||||||
| 4 | 40408504 | KNOB-F/R_UNDER-TRG292 | 1 | ||||||
| 5 | 40406965 | SCREW-TP-4X18L-TRG292 | 2 | ||||||
| 6 | 40406901 | HARNESS-CLUTCH SWITCH-TRG730 | 81.3x167.7x173. 2 |
1 | SUB TO 40408502 | ||||
| 7 | 40263919 | LEVER-F/R-TRG290 | OD16X390L | 1 | |||||
| 8 | 40279802 | COVER-DUST-TRG292 | RUBBER | 1 | |||||
| 9 | 40029321 | RING-SNAP-S814015001 | D15 | 1 | |||||
| 10 | 40028178 | WASHER-PLN-S364160013 | O.D30XI.D17X3T | 1 | |||||
| 11 | 40029199 | O-RING-S801012010 | D11.8XW2.4 | 1 | |||||
| 12 | 40032414 | BOSS-F/R LEVER-TRG292 | 1 | ||||||
| 13 | 40029261 | RING-SNAP-S810016001 | D16 | 1 | |||||
| 14 | 40010262 | ARM-M/SHIFT#1-TRG290 | 1 | ||||||
| 15 | 40270937 | PIN-COILED-S447062412 | D6X24L | 2 | |||||
| 16 | 40028923 | BOLT-HEX W/WS-S153082533 | M8XP1.25X25L | 2 | |||||
| 17 | 40009216 | FORK-F/R-TRG290 | OD103 | 1 | |||||
| 18 | 40400353 | RAIL-F/R-TRG290 | D16x166L | 1 | |||||
| 19 | 40009498 | BOLT-RAIL-TRG291 | H19 | 1 | |||||
| 20 | 40029196 | O-RING-S801010A10 | D9.8XW2.4 | 1 | |||||
| 21 | 40011943 | SPRING-TRG290 | D1.6XD7.2X22L | 1 | |||||
| 22 | 40010339 | BALL-BRG STEEL-A067A009 | 11/32" | 1 | |||||
| 23 | 40029011 | BOLT-HEX W/WS-S159084033 | M8XP1.25X40L | 2 | |||||
| 24 | 40408308 | GUIDE-F/R-LEVER-DE-TRG292 | 3.2T | 2 | |||||
| 25 | 40009979 | SPACER-MOUNT-TRG830 | OD13.8XID9.2X18L | 2 | |||||
| 26 | 40007406 | MOUNT-PEDAL FRAME-TRG830 | OD20XID14X2T | 2 | |||||
| 27 | 40012238 | PLATE-LOCK-TRG292 | 1 |
