LS Gear-F/Axle(17t)-Trg400
SKU 40031573
$113.89
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

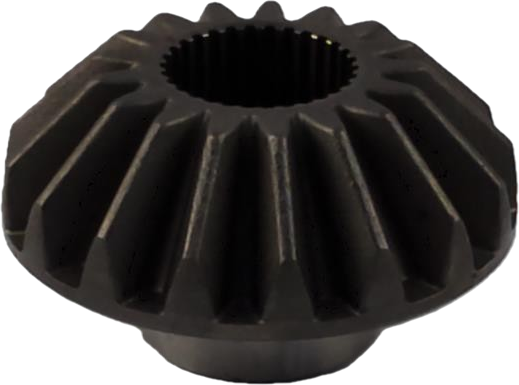

LS Gear-F/Axle(17t)-Trg400
Product Details
Weight: 1.15 lbs
LS Gear-F/Axle(17t)-Trg400

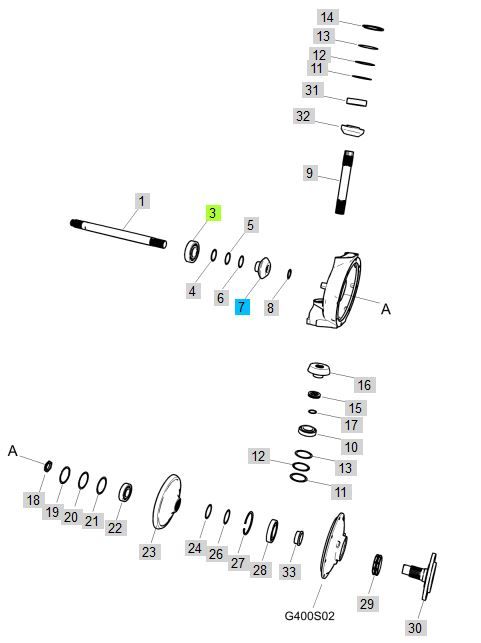

#7 in the diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40031571 | SHAFT-F/DIFF(RH)-TRG400 | 1 | RH | |||||
| 1 | 40031572 | SHAFT-F/DIFF(LH)-TRG400 | 1 | LH | |||||
| 3 | 40032267 | BEARING-BALL-A0863100 | 6310 | 1 | 40328797 | ||||
| 4 | 40012834 | LINER-A0870481 | OD61XID50X0.15T | 1 | |||||
| 5 | 40031632 | LINER-TRG400 | 1 | ||||||
| 6 | 40012835 | LINER-A0870482 | OD61XID50X0.2T | 1 | |||||
| 7 | 40031573 | GEAR-F/AXLE(17T)-TRG400 | 1 | ||||||
| 8 | 40029277 | RING-SNAP-S810040001 | D40 | 1 | |||||
| 9 | E | 40332940 | SHAFT-KING PIN-TRG400 | 1 | |||||
| 10 | 40031627 | BEARING-TAPER ROLLER-TRG400 | #32210J | 1 | |||||
| 11 | 40012429 | LINER-TRG970 | OD89.0XID73.0X0.5L | 2 | |||||
| 12 | 40012427 | LINER-TRG970 | OD89.0XID73.0X0.1t | 2 | |||||
| 13 | 40012428 | LINER-TRG970 | OD89.0XID73.0X0.2L | 2 | |||||
| 14 | 40029304 | RING-SNAP-S811090001 | D90 | 1 | |||||
| 15 | 40009737 | BEARING-THRUST-TRG970 | OD60.0XID40.0X13.0L | 1 | |||||
| 16 | E | 40332934 | GEAR-(14T)-TRG400 | 1 | |||||
| 17 | 40029293 | RING-SNAP-S811037001 | D37 | 1 | |||||
| 18 | 40031590 | NUT-LOCK-TRG400 | 1 | ||||||
| 19 | 40031624 | LINER-TRG400 | 99X84X0.15T | 1 | |||||
| 20 | 40031625 | LINER-TRG400 | 99X84X0.20T | 1 | |||||
| 21 | 40031626 | LINER-TRG400 | 99X84X0.50T | 1 | |||||
| 22 | 40261695 | BEARING-BALL-A0863090HL-TRG400 | #6309HL | 2 | |||||
| 23 | E | 40332935 | GEAR-RING(45T)-TRG400 | 1 | |||||
| 24 | 40306749 | LINER-TRG400 | 1 | ||||||
| 26 | 40306750 | LINER-TRG400 | 1 | ||||||
| 27 | 40306746 | RING-SNAP-S811120001 | D120 | 1 | |||||
| 28 | 40306744 | BEARING-BALL- A0862130HL | #62130HL | 1 | |||||
| 29 | 40272732 | SEAL ASSY-FLOTTING-TRG481 | OD100X29 | 1 | |||||
| 30 | 40306912 | SHAFT-F/AXLE-TRG400 | 1 | ||||||
| 31 | E | 40328024 | BEARING-BALL-A0863084H1 | #6308DD H1 | 1 | ||||
| 32 | 40198405 | GEAR-F/AXLE(17T)-TRG400 | 1 | ||||||
| 33 | 40306748 | SLEEVE-BEARING-TRG400 | 1 |
