LS Glass-Door Lh-Trg862
SKU 40430148
$429.99
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Glass-Door Lh-Trg862
Product Details
Weight: 37.50 lbs
LS Glass-Door Lh-Trg862

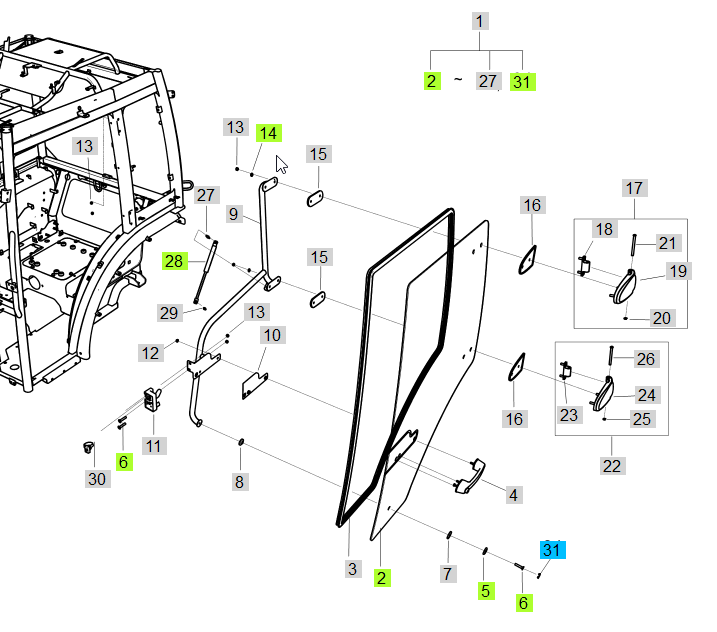

#2 in the diagram
Replaces as 40254813
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40372576 | DOOR ASSY-XR-LH-G862 | 1 | ||||||
| 2 | 40430148 | GLASS-DOOR-LH-TRG862 | 1 | 40254813 | |||||
| 3 | 40265899 | WEATHER STRIP-DOOR-LH-TRG862 | 1 | ||||||
| 4 | 40248078 | HANDLE ASSY-DOOR-G862 | 1 | ||||||
| 5 | E | 40566495 | CAP-A-BLACK-PA6(PAINT)-TRG862 | PI34 | 1 | ||||
| 6 | 40028675 | SCREW-CROSS CSNK-S220803511 | M8X1.25PX35L | 3 | |||||
| 7 | 40415664 | PAD-CAP_A_WIDE-TRG863 | 0 | 1 | |||||
| 8 | 40248718 | PAD-CAP_B-TRG863 | 1 | ||||||
| 9 | 40254815 | GRIP-DOOR LH-TRG862 | 1 | ||||||
| 10 | 40007521 | PAD-HANDLE(LH)-TRG862 | 1 | ||||||
| 11 | 40248079 | LOCK ASSY-DOOR_LH-G862 | 1 | ||||||
| 12 | 40029073 | NUT-FLANGE-S345060013 | M6XP1 | 2 | |||||
| 13 | 40027836 | NUT-LOCK-TRG870 | 10 | ||||||
| 14 | 40028157 | WASHER-PLN-S363080013 | O.D15.5XI.D8.4X1.6T | 4 | |||||
| 15 | 40007523 | PAD-HINGE-TRG862 | 2 | ||||||
| 16 | 40248482 | PAD-HINGE-TRG862 | 2 | ||||||
| 17 | 40248077 | HINGE ASSY-A-G862 | 1 | ||||||
| 18 | 40010463 | HINGE-BASE DOOR-(CST)G862 | 1 | ||||||
| 19 | 40248041 | HINGE-OUTSIDE_A-TRG862 | 1 | ||||||
| 20 | 40029315 | RING-SNAP-S814007003 | 1 | ||||||
| 21 | 40009464 | PIN-HINGE-TRG862 | D12X94.5L | 1 | |||||
| 22 | 40248074 | HINGE ASSY-B-G862 | 1 | ||||||
| 23 | 40010463 | HINGE-BASE DOOR-(CST)G862 | 1 | ||||||
| 24 | 40248040 | HINGE-OUTSIDE_B-TRG862 | 1 | ||||||
| 25 | 40029315 | RING-SNAP-S814007003 | 1 | ||||||
| 26 | 40009464 | PIN-HINGE-TRG862 | D12X94.5L | 1 | |||||
| 27 | 40238907 | END-BALL_GS_KJ-TRG830 | 1 | ||||||
| 28 | 40247624 | CYLINDER ASSY-GAS-TRG862 | 1 | 40429496 | |||||
| 29 | 40238907 | END-BALL_GS_KJ-TRG830 | 1 | ||||||
| 30 | 40010344 | LOCK-STRIKER-TRG862 | 1 | ||||||
| 31 | E | 40566496 | CAP-B-BLACK-PA6(PAINT)-TRG862 | PI24 | 1 |
