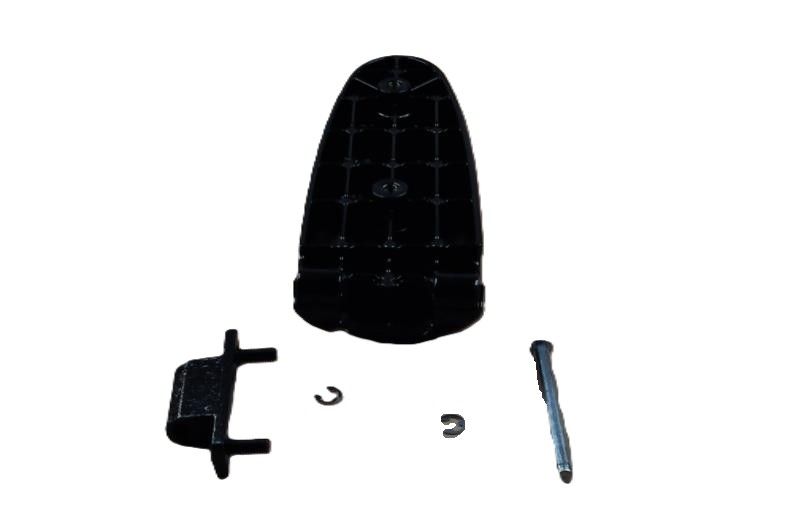

LS Hinge-Assembly-MT5-B-TRG862
SKU 40351776
$79.99
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Hinge-Assembly-MT5-B-TRG862
Product Details
Weight: 1.40 lbs
LS Hinge-Assembly-MT5-B-TRG862

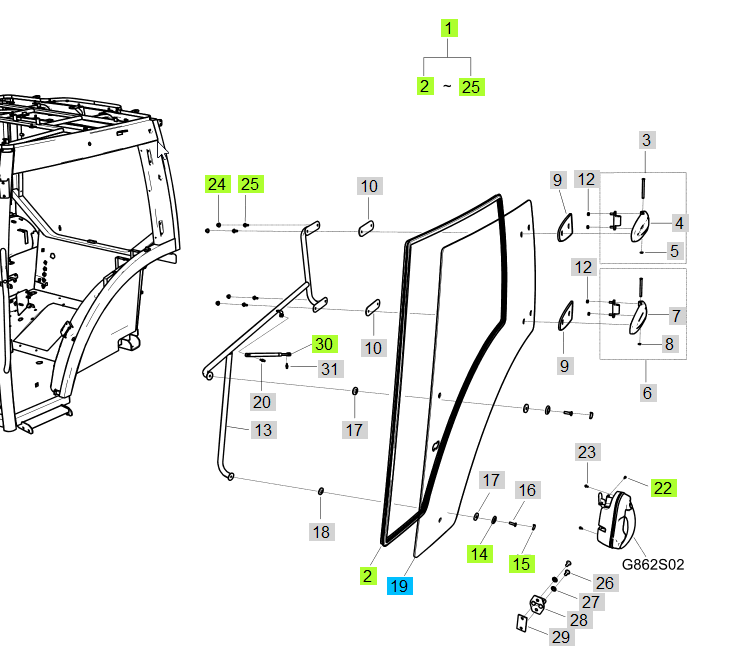

#6 in the diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40444120 | DOOR ASSY-LH_BK-G862 | 1490X1300X200 | 1 | |||||
| 2 | 40357994 | WEATHER STRIP-DOOR-TU-TRG862 | - | 1 | |||||
| 3 | 40351775 | HINGE-ASSY_A-TRG862 | 289X98X76 | 1 | |||||
| 4 | 40351770 | HINGE-OUTSIDE_A-TRG862 | 289X98X39 | 1 | |||||
| 5 | 40029315 | RING-SNAP-S814007003 | 1 | ||||||
| 6 | 40351776 | HINGE-ASSY_B-TRG862 | 289X98X76 | 1 | |||||
| 7 | 40351771 | HINGE-OUTSIDE_B-TRG862 | 289X98X39 | 1 | |||||
| 8 | 40029315 | RING-SNAP-S814007003 | 1 | ||||||
| 9 | 40351772 | SEAL-DOOR HINGE-OUTER-TRG862 | 229X104X13 | 2 | |||||
| 10 | 40319029 | SEAL-DOOR HINGE-INNER-TRG862 | 2 | ||||||
| 12 | 40027836 | NUT-LOCK-TRG870 | 4 | ||||||
| 13 | 40315388 | GRIP-ASSY_DOOR_INSIDE_LH-TRG862 | 1 | ||||||
| 14 | E | 40566495 | CAP-A-BLACK-PA6(PAINT)-TRG862 | PI34 | 2 | ||||
| 15 | E | 40566496 | CAP-B-BLACK-PA6(PAINT)-TRG862 | PI24 | 2 | ||||
| 16 | 40028674 | SCREW-CROSS CSNK-S220802511 | M8X1.25PX25L | 2 | |||||
| 17 | 40248715 | PAD-CAP_A-TRG863 | 2 | ||||||
| 18 | 40248718 | PAD-CAP_B-TRG863 | 2 | ||||||
| 19 | 40430014 | GLASS-DOOR_LH-TRG862 | 1286X1430X186 | 1 | 40351773 | ||||
| 20 | 40238907 | END-BALL_GS_KJ-TRG830 | 1 | ||||||
| 22 | 40028687 | SCREW-CROSS RD-S224401011 | M4X0.7PX10L | 1 | |||||
| 23 | 40072821 | SCREW-W/SP&PL WS-S227401011 | M4X0.7PX10L | 2 | |||||
| 24 | 40008371 | CAP-BOLT-TRG830 | 4 | 40008321 | |||||
| 25 | 40029008 | BOLT-HEX WWS-S159082533 | M8XP1.25X25L | 4 | |||||
| 26 | 40367785 | SCREW-WRENCH-M8X20L-TRG869 | M8X1.25PX16L | 2 | |||||
| 27 | 40335817 | WASHER-T/LOCK C-S371080013 | M8 | 2 | |||||
| 28 | 40319034 | LOCK-STRIKER-DOOR-TRG862 | 1 | ||||||
| 29 | 40318826 | PAD-LOCK-STRIKER-DOOR-TRG862 | 1 | ||||||
| 30 | 40370364 | CYLINDER ASSY-GAS-TU-TRG862 | - | 1 | |||||
| 31 | 40238907 | END-BALL_GS_KJ-TRG830 | 1 |
