LS Quick Attach Plate Guide-Tsl
SKU 40230850
$5.19
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Quick Attach Plate Guide-Tsl
Product Details
Weight: 0.15 lbs
LS Quick Attach Plate Guide-Tsl

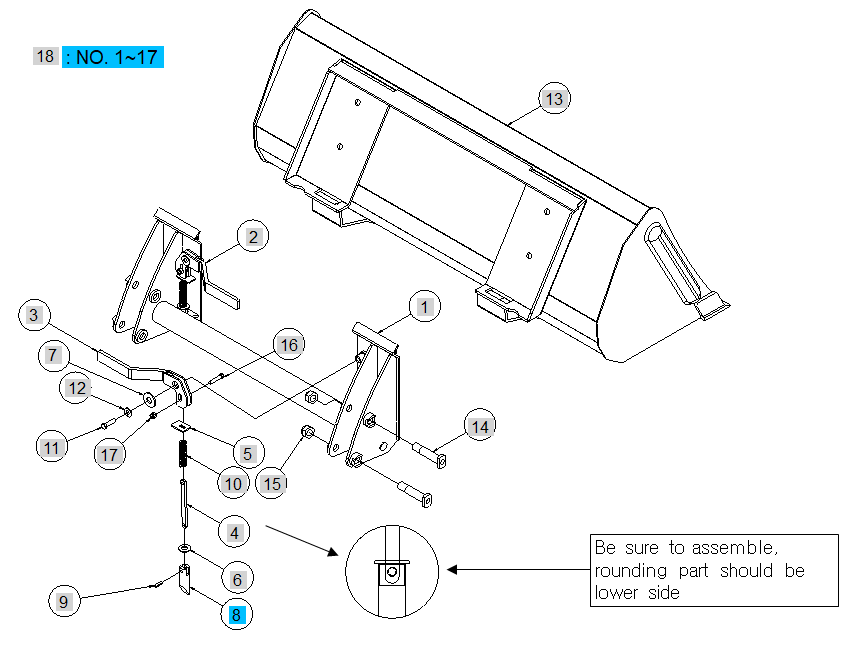

#5 in the diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40272719 | QUICK ATTA.W.A. | 1 | ||||||
| 2 | 40286958 | HANDLE-L/H | 1 | ||||||
| 3 | 40286959 | HANDLE-R/H | 1 | ||||||
| 4 | 40230849 | PIN LINK | 2 | ||||||
| 5 | 40230850 | PLATE GUIDE | 2 | ||||||
| 6 | 40230851 | WASHER #1 | 2 | ||||||
| 7 | 40230852 | WASHER #2 | 2 | ||||||
| 8 | 40230853 | PIN, Φ31.5x112L | 2 | ||||||
| 9 | 40230615 | SPRING PIN, Φ10x30L | 4 | ||||||
| 10 | 40230854 | SPRING, I.D20x130L | 2 | ||||||
| 11 | 40228621 | BOLT-HEX. M14-2.0P 35L | 2 | ||||||
| 12 | 40228643 | WASHER-SPRING, M14 | 2 | ||||||
| 13 | 40286949 | Bucket W.A.-BOBCAT(72") | 1 | ||||||
| 14 | 40230616 | PIN W.A, Φ25-138L | 4 | ||||||
| 15 | 40228633 | HEX.NUT LOCK, M24-1.5P | 4 | ||||||
| 16 | 40229894 | HEX.BOLT M10-1.5P 35L | 2 | ||||||
| 17 | 40228634 | NUT HEX. (NYLON), M10-1.5P | 2 | ||||||
| 18 | 40286964 | QUICK ATTA.ASS'Y, NO 1~12 | 1 |
