LS Rear Remote Kit for MT225s w/o Backhoe
SKU 20157639
$610.69
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Rear Remote Kit for MT225s w/o Backhoe
Product Details
Weight: 25.00 lbs

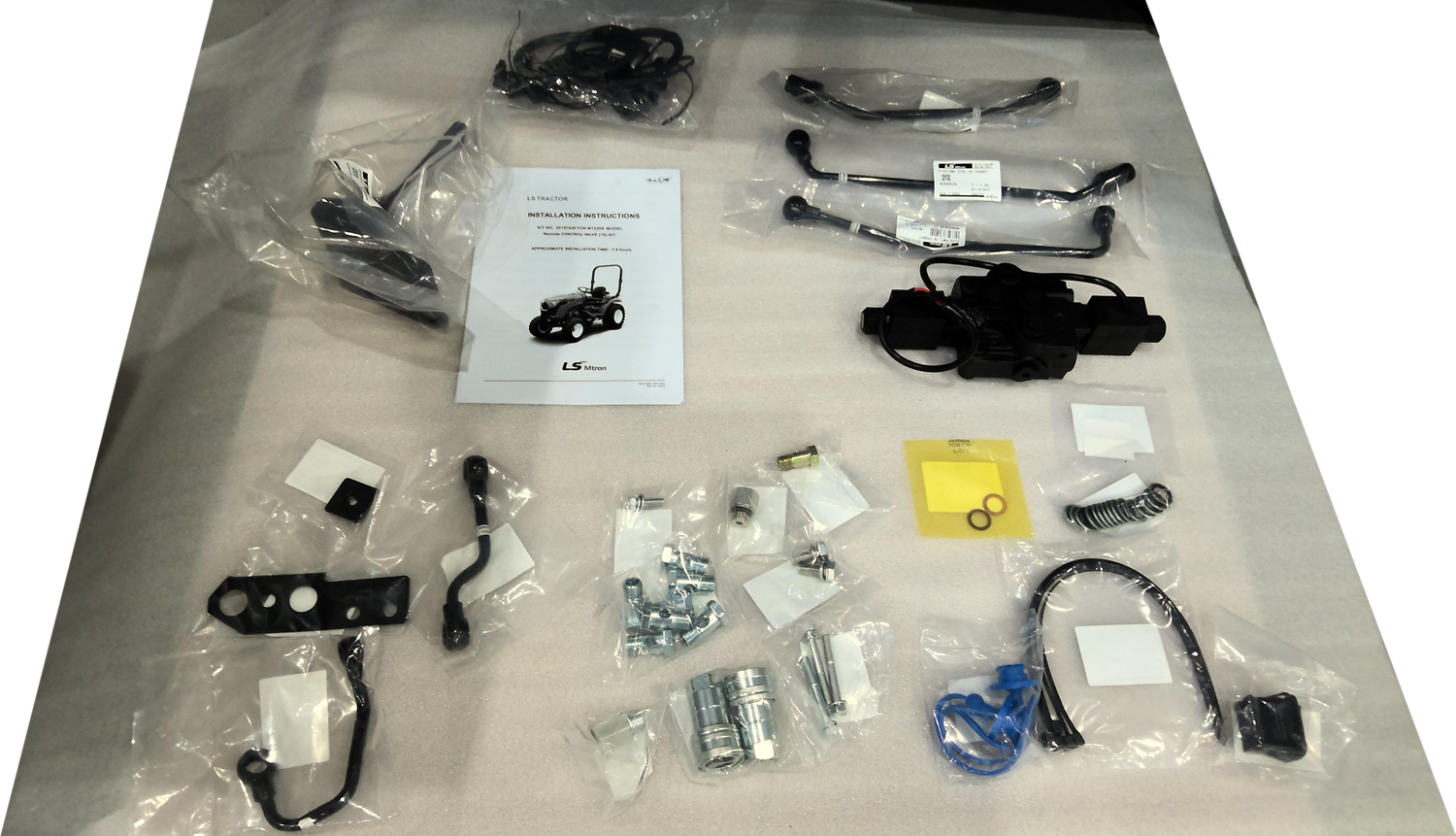

LS Rear Remote Kit for MT225s without Backhoe

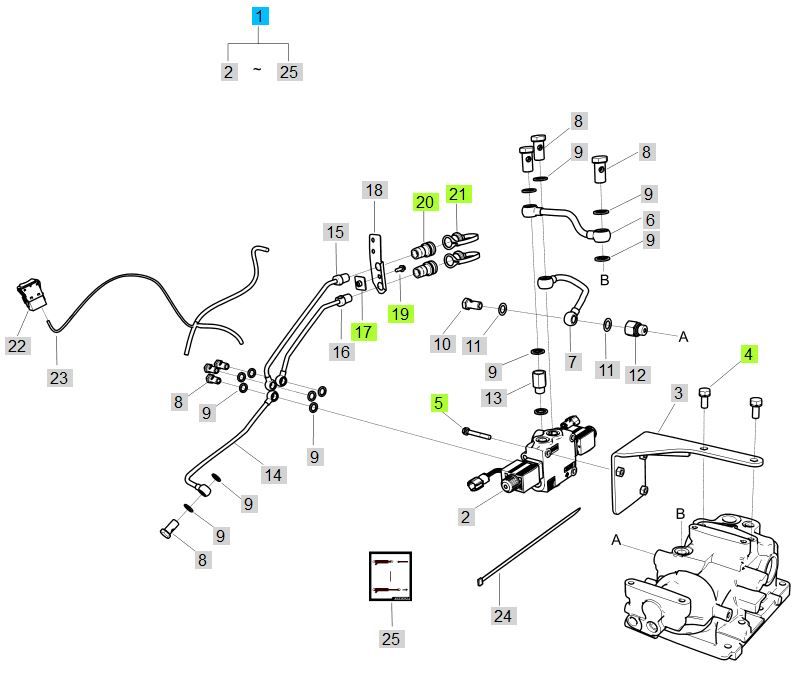

| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 20157639 | R/CONTROL VALVE-1S_ROPS_USA-MT 2 |
1 | DIA KIT | |||||
| 2 | 40420471 | VALVE ASSY-REMOTE_1S-G827 | 1 | ||||||
| 3 | 40420472 | BRACKET-RMT VALVE-TRG827 | 6t | 1 | |||||
| 4 | 40028948 | BOLT-HEX W/WS-S154102533 | M10XP1.25X25L | 2 | |||||
| 5 | 40028930 | BOLT-HEX W/WS-S153086033 | M8XP1.25X60L | 3 | |||||
| 6 | 40436021 | PIPE-RMT_OUT-TRG827 | Φ10x0.7t | 1 | |||||
| 7 | 40436022 | PIPE-RMT_DRAIN-TRG827 | Φ10x0.7t | 1 | |||||
| 8 | 40010321 | BOLT-UNION-TRG630 | OD22XPF3/8 | 7 | |||||
| 9 | 40012415 | SEAL-BONDED-TRG823 | OD16.8X1.5T | 15 | |||||
| 10 | 40258002 | BOLT-UNION_M14X1.5-TRG630 | 1 | ||||||
| 11 | 40012780 | GASKET-Q0650003 | ID14X1T | 2 | |||||
| 12 | 40187177 | CONNECTOR-PF3_8-M14-TRG640 | 1 | ||||||
| 13 | 40010251 | CONNECTOR-UNION-TRG827 | PF3/8XOD22XID11X40L | 1 | |||||
| 14 | 40420473 | PIPE-RMT_IN-TRG827 | Φ10x0.7t | 1 | |||||
| 15 | 40436024 | PIPE-RMT CTRL_UP-TRG827 | Φ10x0.7t | 1 | |||||
| 16 | 40420477 | PIPE-RMT CTRL_DW-TRG827 | Φ10x0.7t | 1 | |||||
| 17 | 40012212 | BRACKET-RENOCON PIPE-TRG827 | 1 | 40235529 | |||||
| 18 | 40420470 | BRACKET-RMT PIPE-TRG827 | 3.2t | 1 | |||||
| 19 | 40028973 | BOLT-HEX W-WS-S155082533 | M8XP1.25X25L | 1 | |||||
| 20 | 40230238 | COUPLER-QUICK(1/2)-TRG827 | 2 | 40449511 | |||||
| 21 | 40264688 | CAP-COUPLER 1/2_B_N-TRG827 | BLUE | 2 | 40290327 | ||||
| 22 | 40421756 | SWITCH-R/CONTROL-TRG750 | 1 | ||||||
| 23 | 40421573 | HARNESS-R/CONTROL VALVE-TRG730 | 1 | ||||||
| 24 | 40012875 | BAND-WIRE-A0640083 | 5 | ||||||
| 25 | 40236924 | DECAL-AUX CONTROL-TRG980 | 1 |
