LS Sensor-Water Temp-TRG750
SKU 40273637
$31.09
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Sensor-Water Temp-TRG750
Product Details
Weight: 0.10 lbs
LS Sensor-Water Temp-TRG750

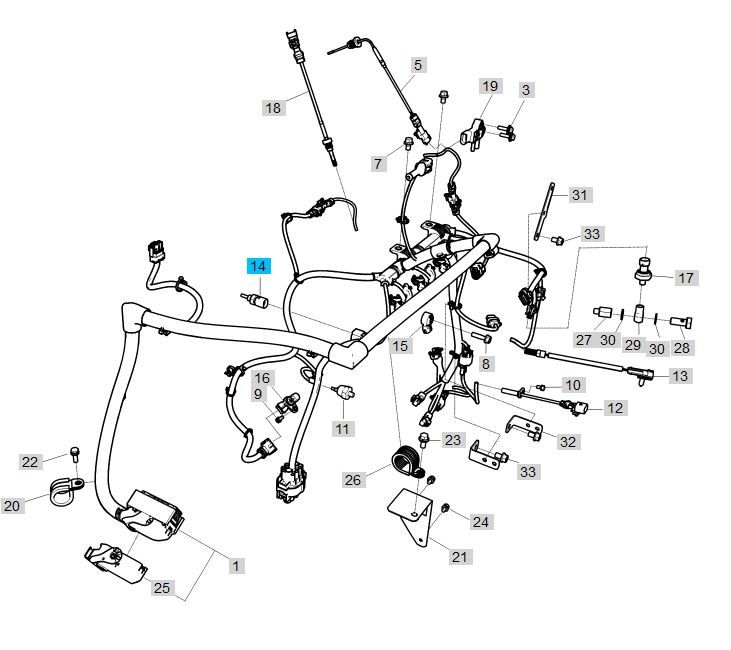

#14 in the diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | E | 40519332 | HARNESS-ECU2EG(L3CRTV_XR)-TRG7 30 |
- | 1 | ||||
| 3 | 40028967 | BOLT-HEX W/WS-S155062533 | M6XP1X25L | 2 | |||||
| 5 | 40346507 | SENSOR-AIR TEMP(T5)-EGQ180 | 20x118x242 | 1 | 40346872 | ||||
| 7 | 40028970 | BOLT-HEX W/WS-S155081633 | M8XP1.25X16L | 2 | |||||
| 8 | 40268193 | BOLT-HEX FLANGE(M8X1.25X30L) | M8 X 1.25P X 30 | 1 | |||||
| 9 | 40438588 | BOLT-HEX W/WS(M6X1.0X16L)-EGQ1 00 |
M6x1.0x16L | 1 | |||||
| 10 | 40028909 | BOLT-HEX W/WS-S153061233 | M6XP1X12L | 1 | |||||
| 11 | 40007802 | SWITCH-OIL PRESSURE-EGQ180 | 1 | ||||||
| 12 | 40511370 | SENSOR-CRANK POSITION-TRG750 | 32.4x186.4x32.1 | 1 | |||||
| 13 | 40273634 | SENSOR-AIR TEMP(T2)-TRG750 | 1 | ||||||
| 14 | 40273637 | SENSOR-WATER TEMP-TRG750 | 1 | ||||||
| 15 | 40273646 | SENSOR-KNOCK-TRG750 | 1 | ||||||
| 16 | 40273644 | SENSOR-CAM POSITION-TRG750 | 1 | ||||||
| 17 | 40273639 | SENSOR-AIR PRESSURE(P2)-TRG750 | 1 | ||||||
| 18 | 40346506 | SENSOR-AIR TEMP(T3)-EGQ180 | 17x20x300 | 1 | 40273635 | ||||
| 19 | 40273633 | SENSOR-DPS-TRG750 | 1 | ||||||
| 20 | 40447252 | CLAMP-HARNESS 25/20-TRG750 | D20 | 1 | |||||
| 21 | 40323374 | PLATE-HEAT INSULATION-TRG750 | 1 | ||||||
| 22 | 40028966 | BOLT-HEX W/WS-S155062033 | M6XP1X20L | 1 | |||||
| 23 | 40028971 | BOLT-HEX W/WS-S155082033 | M8XP1.25X20L | 1 | |||||
| 24 | 40028963 | BOLT-HEX W/WS-S155061233 | M6XP1X12L | 2 | |||||
| 25 | 40381620 | CONNECTOR-ECU96P-TRG730 | 96PIN | 1 | |||||
| 26 | 40447254 | CLAMP-HARNESS 30/20-TRG750 | D20 | 1 | |||||
| 27 | A | 40512065 | CONNECTOR-P2-EGQ160 | 19.6x31.0x17.0 | 1 | ||||
| 28 | A | 40363494 | UNION-P2-EGQ160 | 22.0x14.0x32.0 | 1 | ||||
| 29 | A | 40009919 | BOLT-UNION-TRG823 | M12X1.75X22L | 1 | ||||
| 30 | A | 40012552 | SEAL-COPPER-TRG823 | OD19XID12.2X1.5T | 2 | ||||
| 31 | A | 40519344 | BRACKET-EG HARNESS(3CYL)-TRG75 0 |
- | 1 | ||||
| 32 | A | 40519342 | CLAMP-HARNESS-TRG750 | - | 2 | ||||
| 33 | A | 40268189 | BOLT-HEX FLANGE(M8X1.25X12L) | M8 X 1.25P | 3 |
