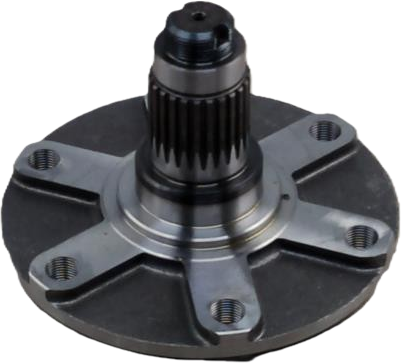

LS Shaft-Axle-Trg400 (Replaces 40188935, 40525181)
SKU 40347551
$238.09
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Shaft-Axle-Trg400 (Replaces 40188935, 40525181)
Product Details
Brand: LS Tractor
Weight: 9.30 lbs
LS Shaft-Axle-Trg400
(Replaces 40188935, 40525181)

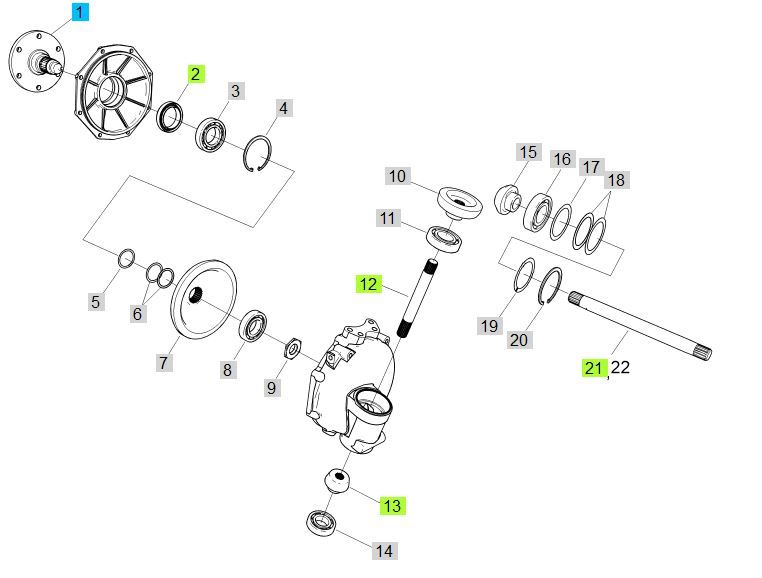

#1 in the parts diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40188935 | SHAFT-F/AXLE-TRG400 | 2 | 40347551 | |||||
| 2 | 40188939 | SEAL-OIL-TRG400 | TC4Y578018 | 2 | 40334121 | ||||
| 3 | 40061089 | BEARING-BALL-A0862090 | #6209(45X85X19) | 2 | |||||
| 4 | 40198357 | RING-SNAP-S811085001 | 2 | ||||||
| 5 | 40188946 | LINER-TRG400 | OD61XID51X0.2T | 2 | |||||
| 6 | 40188945 | LINER-TRG400 | ID51XOD61X0.5T | 4 | |||||
| 7 | 40188931 | GEAR-BEVEL(49T)-TRG400 | BEVEL-49T | 2 | |||||
| 8 | 40012711 | BEARING-BALL-A0862080 | - | 2 | |||||
| 9 | 40009906 | NUT-LOCK-TRG400 | H50 | 2 | |||||
| 10 | 40188929 | GEAR-BEVEL(19T)-TRG400 | BEVEL-19T | 2 | |||||
| 11 | 40012709 | BEARING-BALL-A0862070 | - | 2 | |||||
| 12 | 40188934 | SHAFT-KING PIN-TRG400 | 2 | ||||||
| 13 | 40188930 | GEAR-BEVEL(11T)-TRG400 | BEVEL-11T | 2 | |||||
| 14 | 40012709 | BEARING-BALL-A0862070 | - | 2 | |||||
| 15 | 40188928 | GEAR-BEVEL(9T)-TRG400 | BEVEL-9T | 2 | |||||
| 16 | 40012709 | BEARING-BALL-A0862070 | - | 2 | |||||
| 17 | 40188667 | LINER-TRG400 | OD54XID44X0.3T | 2 | |||||
| 18 | 40188666 | LINER-TRG400 | OD71XID56X0.5T | 4 | |||||
| 19 | 40214598 | LINER-TRG400 | ID46XOD56X0.2T | 2 | |||||
| 20 | 40029301 | RING-SNAP-S811072001 | D72 | 2 | |||||
| 21 | 40188933 | SHAFT-F/DIFF RH-TRG400 | 1 | ||||||
| 22 | 40188932 | SHAFT-F/DIFF LH-TRG400 | 1 |
