LS Side Spindle Assembly for LM1160
SKU 40365491
$899.99
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Side Spindle Assembly for LM1160
Product Details
Weight: 5.20 lbs
LS Side Spindle Assembly for LM1160

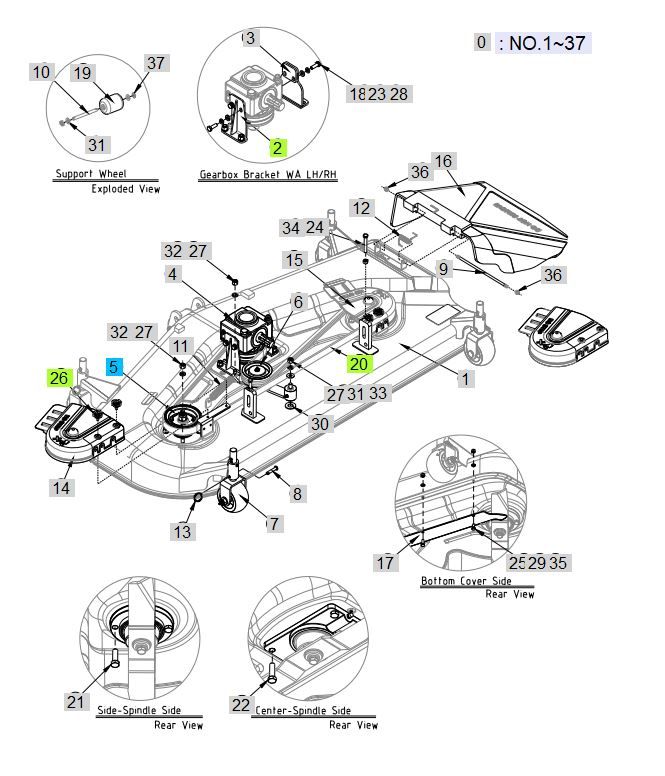

#5 in the diagram
| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 0 | 40378740 | Deck Ass'y | 1 | NO.1~37 | |||||
| 1 | 40365469 | Deck Ass'y | 1 | ||||||
| 1 | 40383757 | Deck Ass'y | 1 | (2018.09.21~ ) | |||||
| 1 | 40431556 | DECK WA-TSMM | 1 | (2020.02.28~ ) | |||||
| 1 | 40462207 | DECK W.A-TSMM | 1 | MM60AE0025~(2022.06.20~) | |||||
| 2 | 40365479 | Gearbox Bracket WA - LH | 1 | ||||||
| 2 | 40372129 | Gearbox Bracket WA - LH | 1 | (2018.09.21~ ) | |||||
| 3 | 40365480 | Gearbox Bracket WA - RH | 1 | ||||||
| 3 | 40372130 | Gearbox Bracket WA - RH | 1 | (2018.09.21~ ) | |||||
| 4 | 40365481 | Center Spindle Ass'y | 1 | ||||||
| 5 | 40365491 | Side Spindle Ass'y | 1 | ||||||
| 5 | 40365491 | Side Spindle Ass'y | 2 | (2018.09.21~ ) | |||||
| 6 | 40365497 | Tension Ass'y | 1 | ||||||
| 7 | 40365502 | Wheel Ass'y | 4 | ||||||
| 8 | 40365470 | Wheel Lock Pin | 4 | ||||||
| 9 | 40365471 | Discharge PIN | 1 | ||||||
| 10 | 40365472 | Support Wheel Shaft | 1 | ||||||
| 11 | 40365460 | Tensioner Spring | 1 | ||||||
| 12 | 40365459 | Discharge Spring | 1 | ||||||
| 13 | 40365458 | Ring Lock Pin | 4 | ||||||
| 14 | 40365473 | Belt Cover - LH | 1 | ||||||
| 14 | 40378313 | Belt Cover - LH | 1 | (2018.09.21~ ) | |||||
| 15 | 40365474 | Belt Cover - RH | 1 | ||||||
| 15 | 40378314 | Belt Cover - RH | 1 | (2018.09.21~ ) | |||||
| 16 | 40365475 | Discharge Deflector | 1 | ||||||
| 16 | 40378724 | Discharge Deflector | 1 | (2018.09.21~ ) | |||||
| 17 | 40365476 | Bottom Cover | 1 | ||||||
| 18 | 40365477 | Washer, Ø24x10.2x3.2T | 4 | ||||||
| 19 | 40255447 | Support Wheel | 1 | ||||||
| 20 | 40365468 | Belt | 1 | ||||||
| 20 | 40378725 | Belt | 1 | (2018.09.21~ ) | |||||
| 20 | 40394368 | Belt | 1 | (2018.11.06~ ) | |||||
| 21 | 40365449 | Hex. Bolt-HT, M12-P1.25-35L | 8 | ||||||
| 22 | 40365450 | Hex. Bolt-HT, M12-P1.25-40L | 4 | ||||||
| 23 | 40283967 | Hex. Bolt-HT, M10-P1.5-25L | 4 | ||||||
| 24 | 40365448 | Hex. Bolt-HT, M10-P1.5-70L | 2 | ||||||
| 25 | 40365446 | Hex. Bolt-HT, M8-P1.25-20L | 4 | ||||||
| 26 | 40194098 | KNOB-TRG970 | 1 | 40342505 | |||||
| 27 | 40228642 | WASHER-SPRING,M12 | 13 | ||||||
| 28 | 40228641 | WASHER-SPRING ?10 | 4 | ||||||
| 29 | 40228640 | WASHER-SPRING,M8 | 4 | ||||||
| 30 | 40255416 | Washer-Plain, M20 | 1 | ||||||
| 31 | 40228648 | WASHER-PLAIN Ø12 | 3 | ||||||
| 32 | 40365453 | Hex. Nut, M12-P1.25 | 12 | ||||||
| 33 | 40230897 | HEX.NUT-HT,M12-1.75P | 1 | ||||||
| 34 | 40305381 | HEX. NUT-HT M10-1.5P | 2 | ||||||
| 35 | 40228629 | HEX.NUT,M8-1.25P | 4 | ||||||
| 36 | 40230896 | NUT-SELFLOCK, M8-1.25P | 2 | ||||||
| 37 | 40255422 | Split PIN, Ø3-40L | 2 |
