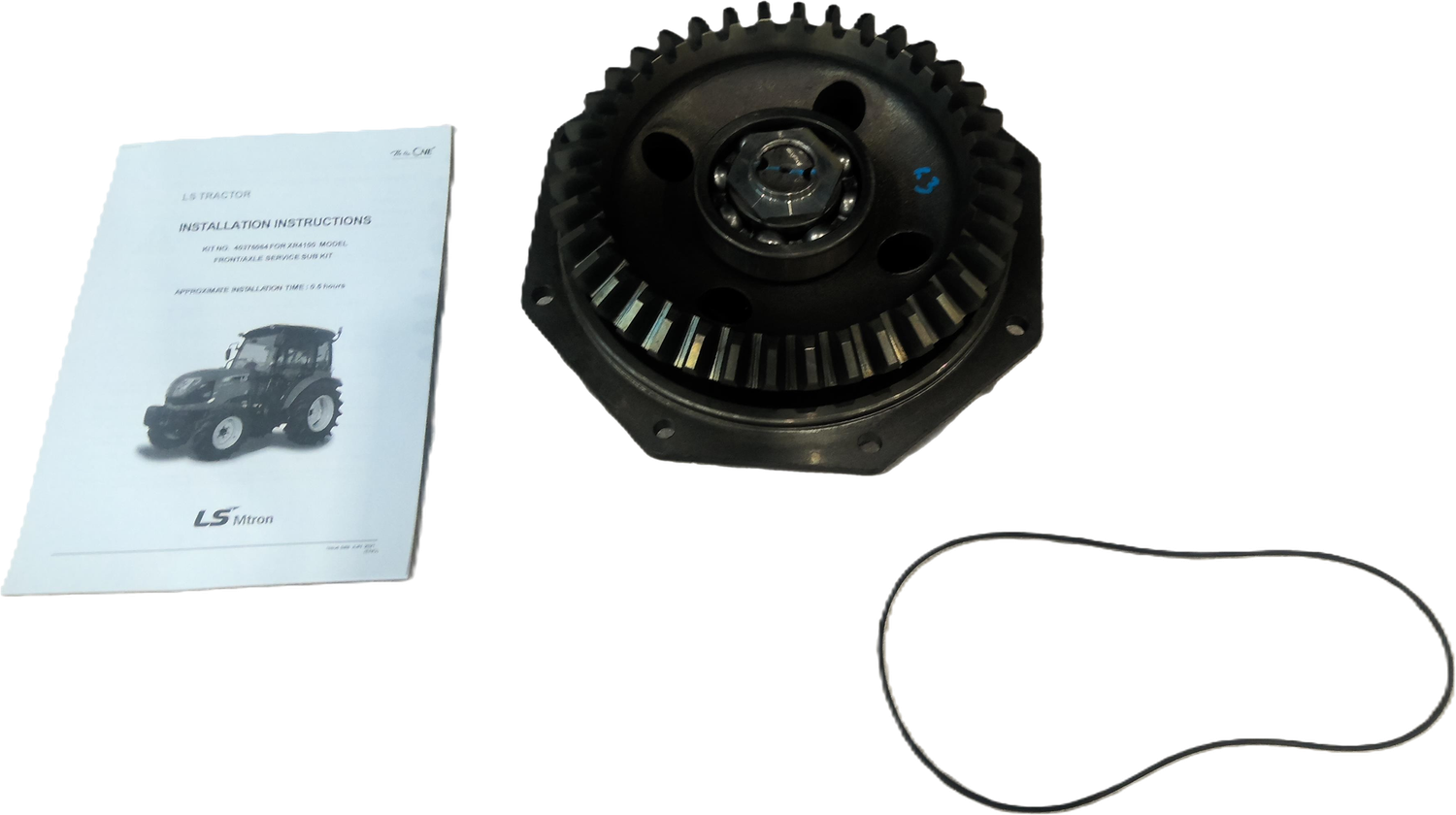

LS Sub Kit-F/Axle SVC-TRG400, fits R40, XR40 & XR41 Series
SKU 40376064
$998.75
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Sub Kit-F/Axle SVC-TRG400, fits R40, XR40 & XR41 Series
Product Details
Weight: 47.00 lbs
LS Sub Kit-F/Axle SVC-TRG400, fits R40, XR40 & XR41 Series

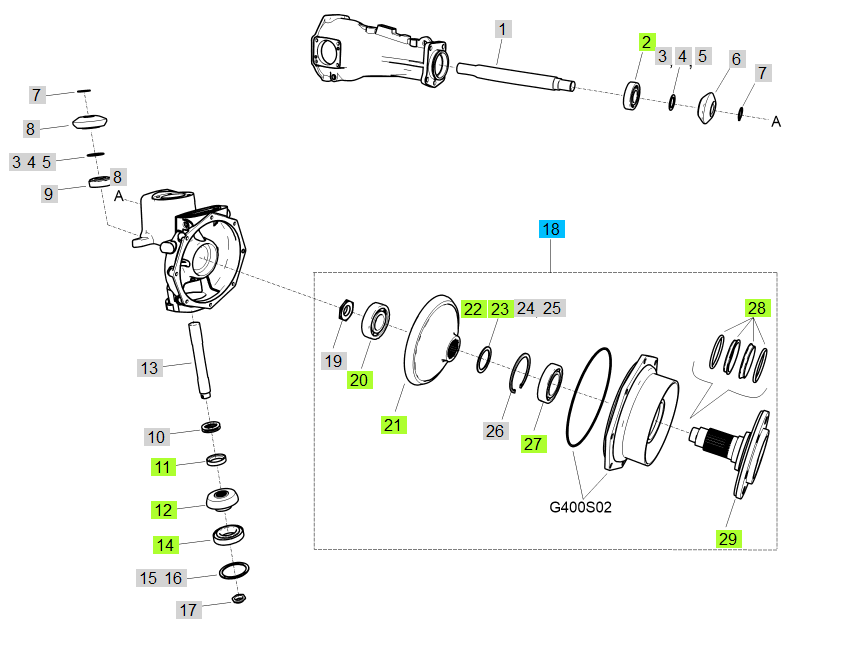

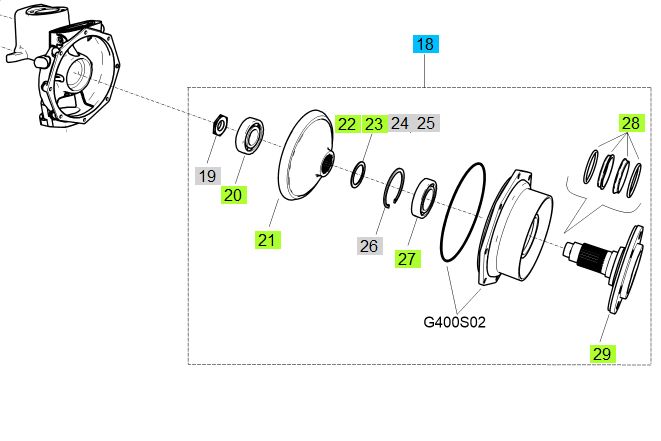

| No. | C | Part Number | Description | Specification | Qty | Compatibility | Other | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40009273 | SHAFT-F/DIFF-TRG400 | OD40X408L | 2 | |||||
| 2 | 40012720 | BEARING-BALL-A0863070 | #63070 | 2 | 40012929 | ||||
| 3 | 40012869 | LINER-A0870108 | AR | ||||||
| 4 | 40012870 | LINER-A0870109 | AR | ||||||
| 5 | 40012871 | LINER-A0870110 | AR | ||||||
| 6 | 40036065 | GEAR-BEVEL-TRG400 | OD92.59XCD56.833(N14) | 2 | |||||
| 7 | 40029273 | RING-SNAP-S810030001 | D30 | 4 | |||||
| 8 | 40036067 | GEAR-BEVEL-TRG400 | OD96.81XID27.5XCD56.833(N15) | 2 | |||||
| 9 | 40007830 | BEARING-TAPER-TRG400 | OD62XID30X21.25L | 2 | |||||
| 10 | 40009716 | BEARING-THRUST-TRG970 | OD52.0XID37.0X12.0L | 2 | |||||
| 11 | 40010102 | SPACER-TRG400 | OD55XID42X11.5L | 2 | |||||
| 12 | 40036066 | GEAR-BEVEL-TRG400 | OD94XID27.5XCD132.89(N14) | 2 | 40347942 | ||||
| 13 | 40009096 | SHAFT-KING PIN-TRG400 | OD30X226L | 2 | |||||
| 14 | 40010341 | BEARING-TAPER-CVG000 | 2 | ||||||
| 15 | 40012427 | LINER-TRG970 | OD89.0XID73.0X0.1t | AR | |||||
| 16 | 40012428 | LINER-TRG970 | OD89.0XID73.0X0.2L | AR | |||||
| 17 | 40009934 | NUT-LOCK-TRG281 | M25X1.5X10L | 2 | |||||
| 18 | 40376064 | SUB KIT-F/AXLE SVC-TRG400 | D280X148L | 2 | |||||
| 19 | 40009906 | NUT-LOCK-TRG400 | H50 | 1 | |||||
| 20 | 40012721 | BEARING-BALL-A0863080 | #63080 | 1 | 40156162 | ||||
| 21 | 40036080 | GEAR-TRG400 | (N38) | 1 | 40318137 | ||||
| 22 | 40012123 | LINER-TRG970 | OD64.0XID49.0X0.5L | AR | |||||
| 23 | 40012124 | LINER-TRG970 | OD64.0XID49.0X0.6L | AR | |||||
| 24 | 40059311 | SHIM-3A1970114 | 0.8T | AR | |||||
| 25 | 40012125 | LINER-TRG970 | OD64.0XID49.0X0.8L | AR | |||||
| 26 | 40029304 | RING-SNAP-S811090001 | D90 | 1 | |||||
| 27 | 40012713 | BEARING-BALL-A0862100 | #62100 | 1 | |||||
| 28 | 40007918 | SEAL ASSY-GROUP-TRG400 | 1 | ||||||
| 29 | 40036082 | SHAFT-FRONT AXLE-TRG400 | 1 | 40347550 |
