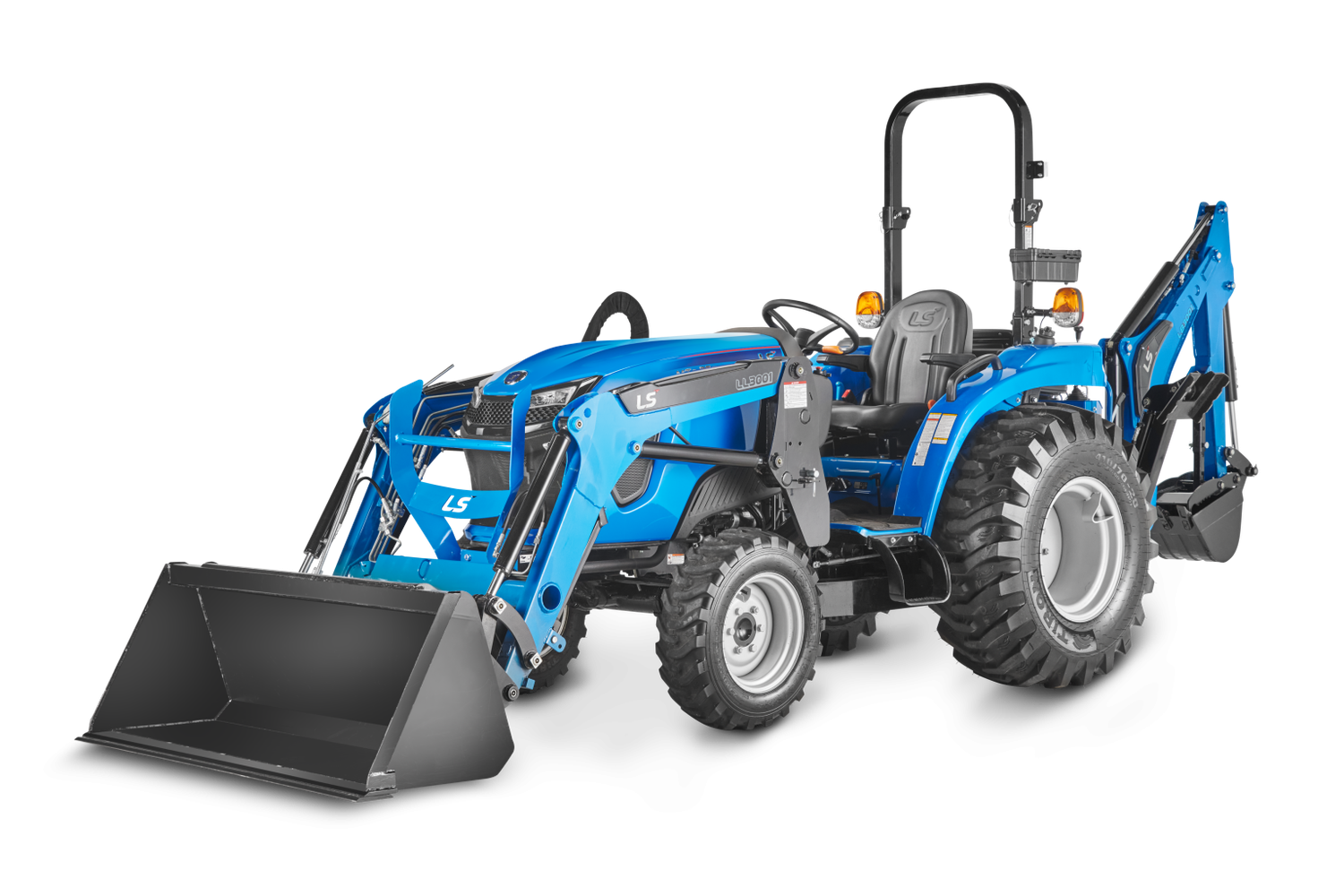

LS Tractor MT226HE Tractor with LL3001 Loader & R4 Tires
SKU MT226HE
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Tractor MT226HE Tractor with LL3001 Loader & R4 Tires
Product Details
Weight: 3 950.00 lbs
LS Tractor MT226HE Tractor with LL3001 Loader & R4 Tires
Loader Lift Capacity...1,965 lbs.
Hitch Lift...........................1,808 lbs.
Engine Horsepower.....24.6 hp
PTO Horsepower............17.1 hp
Key Features
- Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
- Much improved seat comfortability
- Cruise control
- Factory A/C cab available in a 25HP tractor
- New hood design (LS Family look), Grill open space plus 20%
- LED head Lamp
- 1 Inch large tire size and four different tire options
- Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
- Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
- TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
- E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).
Specifications
Engine
Engine
Drive Train
PTO
Hydraulic System
Dimension
Tire Size
Weight
|
Drive Train
| Transmission Type | HST |
| No. of Speed | 3 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
| Mid PTO | 2,500 (Option) |
Hydraulic System
| Control System | Position |
| Implement pump (gpm) | 5.6 |
| Steering pump (gpm) | 3.7 |
| Total flow (gpm) | 9.3 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,896 |
| Remote Valves | 1 Pair (Option) |
Dimension
| Overall length (Frame to Link, in.) | 111.9 |
| Overall width with tires (in.) | 48.7 |
| Wheelbase (in.) | 63.4 |
| Height to top (in.) | 86.4 |
Tire Size
| IND Front / Rear | 23 x 8.5 – 12 / 12 – 16.5 |
| Versa Turf Front / Rear | 12 x 16.5/23 x 8.5 |
Weight
| Total weight without ballast (lbs.) | 1,764 |
Options
Standard
| Loader valve 2pair |
| TF LCD Instrument Panel |
| Lower link – General |
| Stabilizer – Check Link |
| Head Lamp(LED) |
| 12V Outlet |
| Rubber Mat |
| LH Side Step |
| Tool Box |
Options
| Remote valve 1st / 2nd |
| Cruise Control |
| Lower link – Telescopic |
| Mid PTO |
| External Lift Control Lever |
| Clevis Drawbar |
| Rear Work Lamp |
| 7-pole |
| Horn |
| Engine Kill Switch(Rear Fender) |
| Fuel Cap(Locking Type) |
| RH Side Step |
| Seat with Suspension & Armrest |
| Block Heater |
