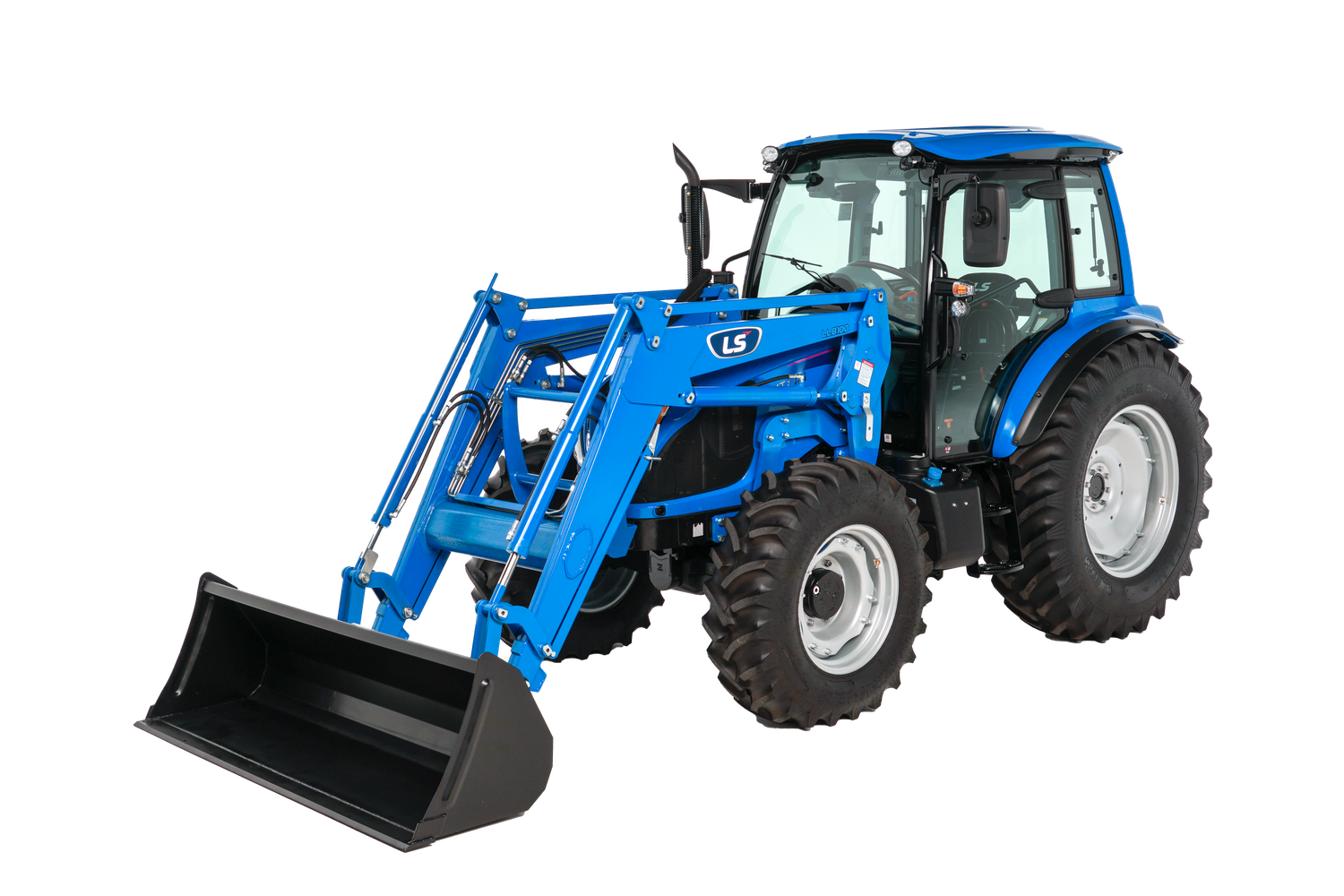

LS Tractor MT7101CSPS Tractor with LL8100 Loader & AG Tires
SKU MT7101CSPS
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LS Tractor MT7101CSPS Tractor with LL8100 Loader & AG Tires
Product Details
Weight: 10 750.00 lbs
LS Tractor MT7101CSPS Tractor with LL8100 Loader & AG Tires
Key Features
- High Capacity Loader – High Performing Lift Capacity, Among The Industry Leaders In Lift Height (139.9 in.)
- Goodyear LSW Tires – Enable Better Traction, Less Field Compaction
- Spacious Cab – Providing a Roomy Climate Controlled Working Environment
- Standard Factory Grille Guard W/ Loader – Full Length Grille Guard Protects Body Panels And Radiator
- Durability And Capacity – Heavy-Duty Frame And Lift Cylinders Enable Three-Point Lift Capacity Up To 5,139 lbs.
- Semi-Powershift With Power Shuttle Transmission – Provides Efficiency And Comfort In Demanding Applications (Standard)
- Right-Side Cab Access – Enables Operators To Access Both Sides Of The Cab (Door And Steps)
- Four Standard Rear Work Lights – Provides Significant Illumination During Night Operation
- Ergonomic Design – Provide Access To Controls For A Variety Of Applications
Specifications
Engine
| Type | 4 Cylinder, CRDI, Water-cooled |
| Model (Tier 4) | F5G |
| Engine HP (Gross) | 100.6 |
| PTO HP | 85.5 |
| Rated Speed (RPM) | 2,200 |
| Displacement (cu. in) | 206.7 |
| Fuel Tank Capacity (gal) | 30.4 |
Drive Train
| Transmission Type | Power Shuttle |
| No. of Speed | 24 X 24 |
| Brakes | Wet, Multi – disc |
| Forward speed (mph) | 1.0 – 23.1 |
PTO
| Type | Power Shuttle |
| Rear, rpm | 540 / 750 / 1,000 |
Hydraulic System
| Control System | Position/Draft |
| Implement pump (gpm) | 15.7 |
| Steering pump (gpm) | 6.5 |
| Total flow (gpm) | 22.2 |
| Category, 3 pt hitch | CAT II |
| Hitch Lift capacity, lbs (Hitch end) | 8,378 |
| Remote Valves | 3 pairs (Front), 2 pairs (Rear) |
Dimension
| Overall length (Frame to Link, in.) | 152.2 |
| Wheelbase (in.) | 90 |
| Min. overall width with tires (in.) | 78.7 |
| Height to top (in.) | 107 |
Tire Size
| Front / Rear R14 | FW: 340/70R28, RR: 460/75R38 |
| Front / Rear Ag | F: 13.6-24, R: 18.4-34 |
Weight
| Total weight without ballast (lbs.) | 7,985 |
Options
| Remote Valve- 1Pair (2 Outlets) Volume adjustable sectional Valve |
| Front Weight with bumper (88lb X 8) |
| Rear weight (99lb X 4) |
| Beacon Lamp |
