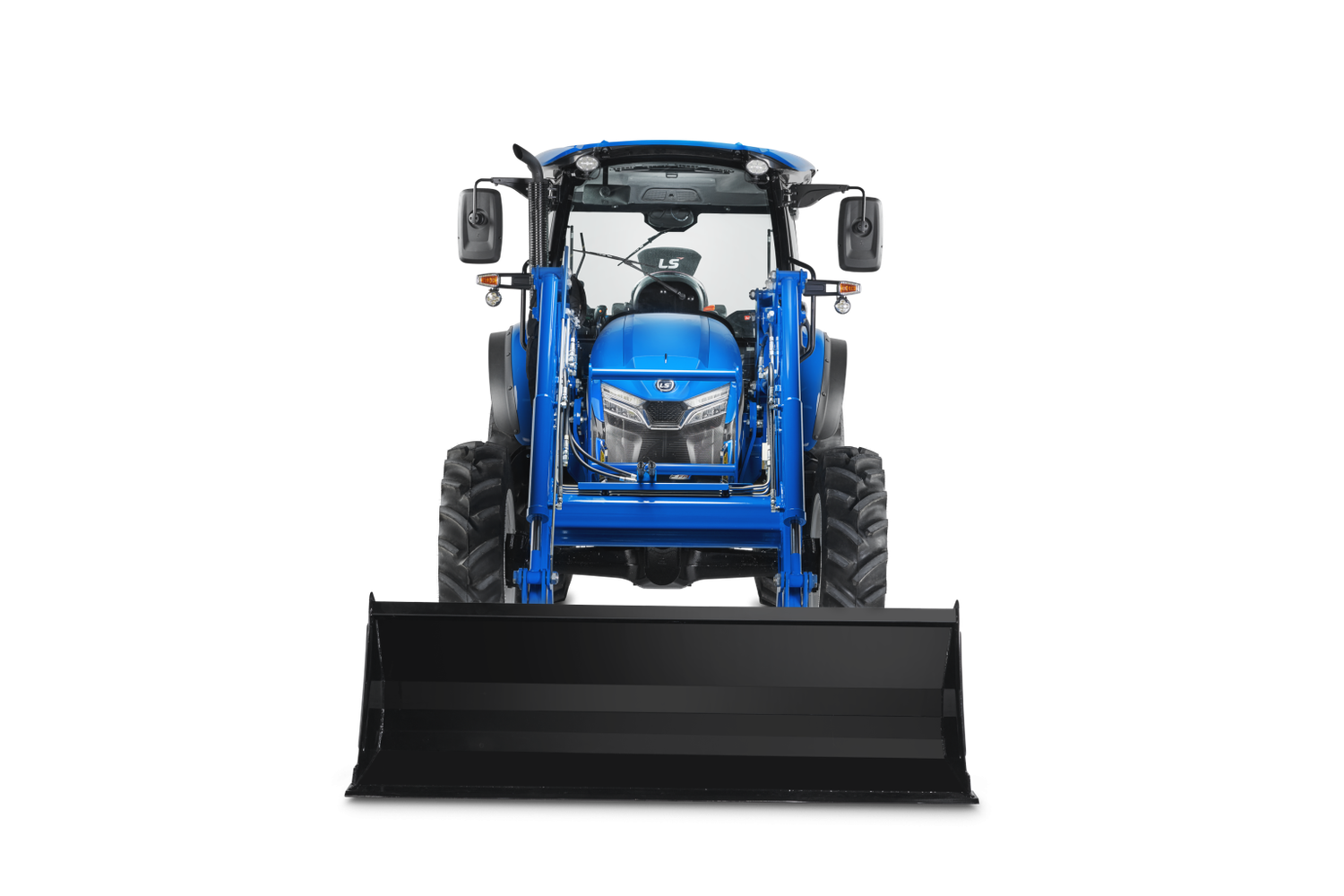

LS Tractor MT774CPS Tractor with LL8100 Loader & AG Tires
Product Details
Weight: 10 250.00 lbs
LS Tractor MT774CPS Tractor with LL8100 Loader & AG Tires
Loader Lift Capacity: 5,139 lbs.
Hitch Lift: 7,275 lbs.
Engine Horsepower: 73.7 hp
PTO Horsepower: 65.6 hp
Key Features
- 24F x 24R Power Shuttle
- Standard Air Suspension Seat
- Standard Electric Engaged Independent PTO
- Standard Instructor Seat
- Standard Interior Power Source
- Optional Third Rear Remote
Specifications
Engine
| Type | 4 Cylinder, CRDI, Water-cooled |
| Model (Tier 4) | F34 |
| Engine HP (Gross) | 73.7 |
| PTO HP | 65.6 |
| Rated Speed (RPM) | 2,200 |
| Displacement (cu. in) | 206.7 |
| Fuel Tank Capacity (gal) | 30.4 |
Drive Train
| Transmission Type | Power Shuttle |
| No. of Speed | 24 X 24 |
| Brakes | Wet, Multi – disc |
| Forward speed (mph) | 0.9 – 20.8 |
PTO
| Type | Independent |
| Rear, rpm | 540 / 750 / 1,000 |
Hydraulic System
| Control System | Position/Draft |
| Implement pump (gpm) | 15.7 |
| Steering pump (gpm) | 6.5 |
| Total flow (gpm) | 22.2 |
| Category, 3 pt hitch | CAT II |
| Hitch Lift capacity, lbs (Hitch end) | 7,275 |
| Remote Valves | 3 pairs (Front), 2 pairs (Rear) |
Dimension
| Overall length (Frame to Link, in.) | 152.2 |
| Wheelbase (in.) | 90 |
| Min. overall width with tires (in.) | 78.7 |
| Height to top (in.) | 105 |
Tire Size
| Front / Rear R14 | FW: 320/85R24, RR: 460/85R30 |
| Front / Rear Ag | F: 11.2-24, R: 16.9-30 |
Weight
| Total weight without ballast (lbs.) | 7,827 |
.
Options
| Remote Valve- 1Pair (2 Outlets) Volume adjustable sectional Valve |
| Front Weight with bumper (88lb X 8) |
| Rear weight (99lb X 4) |
| Beacon Lamp |
