Country of Origin
Varies by production batch
Key Features / Specifications

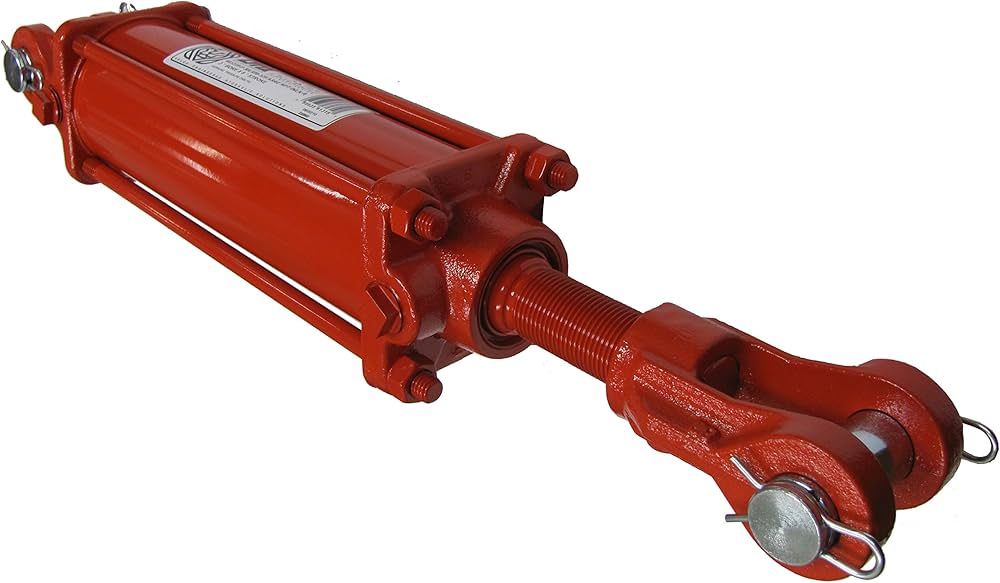

- Product line: TX (Tie Rod)
- Cylinder type: Tie-rod hydraulic cylinder (double-acting)
- Bore: 3.5" (3-1/2")
- Stroke: 18"
- Rod diameter: 1.5"
- Working pressure: 2,500 PSI
- Max rating: Full PSI
- Port type: 1/2" NPT
- Port orientation: Inline
- Pin size: 1"
- Pin-to-pin (center-to-center) retracted: 28.25"
- Pin-to-pin (center-to-center) extended: 46.25"
- Force (listed): Push 28,860 / Pull 19,630
- Color: Red
- Build highlights: 2,500 PSI sealing kits; high-strength hard chrome-plated shaft; skived & burnished heavy-wall steel tubing for extended seal/cylinder life
Ideal For
- Farm and industrial equipment needing a 3-1/2" bore x 18" stroke double-acting cylinder
- Applications where inline 1/2" NPT ports simplify hose routing
- Replacement installs where matching 28.25" retracted and 46.25" extended pin-to-pin length is critical
- Tough environments where chrome rod and heavy-wall tubing help maximize service life
