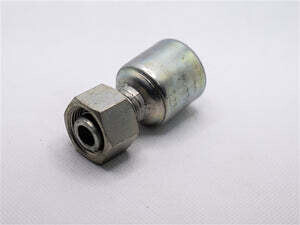

Metric Female DIN Heavy Series Hydraulic Fitting

The 6G-14FDHORX Metric Female DIN Heavy Series Hydraulic Fitting is a crimp-on hydraulic hose end designed for DIN heavy series metric connections, built to deliver a secure, leak-resistant seal when used with compatible crimp systems. It pairs a M22x1.5 female thread with a 14 mm tube OD seat and is sized for 3/8" hose ID, making it a solid choice for hydraulic assemblies requiring dependable metric DIN performance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-14FDHORX
• Product Type: Metric female DIN heavy series hydraulic hose fitting (crimp end)
• Thread Size: M22 x 1.5
• Thread Pitch: 1.5
• Tube OD: 14 mm
• Hose ID: 3/8"
• Overall Length: 2.28"
• Cutoff Length: 1.85"
• Nut Hex Size: 27 mm

Ideal For

• Building or replacing hydraulic hose assemblies needing DIN heavy series metric female connections
• Equipment requiring M22 x 1.5 threads with a 14 mm tube OD interface
• Hydraulic lines using 3/8" ID hose
• Applications where a reliable crimped hose end is required for leak-resistant service
