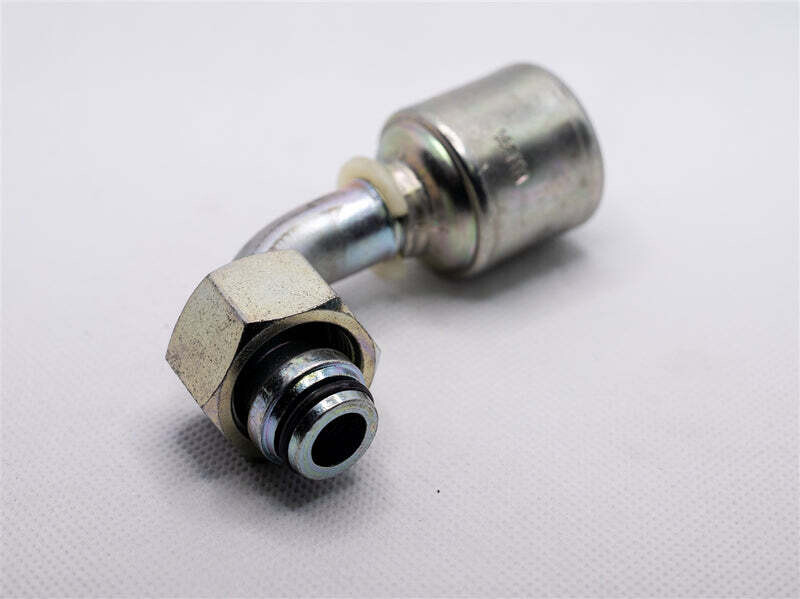

Metric Female DIN Heavy Series Hydraulic Fitting

The 4G-8FDHORX90 Metric Female DIN Heavy Series Hydraulic Fitting is a 90° MegaCrimp® hose coupling designed for reliable, leak-resistant hydraulic connections in demanding applications. Built with the patented “C” insert, it helps form a concentric seal by evenly distributing crimping forces and supports use across different hose constructions and wall thicknesses, simplifying fitting inventory for both one- and two-wire hose assemblies.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-8FDHORX90
• Product Type: Hydraulic hose fitting / MegaCrimp® coupling
• Style: Metric female DIN Heavy Series
• Configuration: 90°
• Hose ID Compatibility: 1/4 in
• Tube OD: 8 mm
• Thread Size: M16 × 1.5
• Thread Pitch: 1.5
• Nut Hex Size: 19 mm
• Overall Length: 2.36 in
• Cutoff Length: 1.34 in
• Drop Length: 1.38 in
• Coupling Technology: Patented “C” insert for concentric, leak-proof crimp
• Compatibility: Works with multiple hose constructions and wall thicknesses, including one- and two-wire hoses

Ideal For

• Hydraulic systems needing a 90° metric female DIN Heavy Series connection
• Building 1/4" hose assemblies with 8 mm tube OD and M16×1.5 threads
• Applications where leak prevention and consistent crimp performance matter
• Shops looking to reduce fitting SKUs while covering multiple hose types
