Metric Female DIN Heavy Series Hydraulic Fitting

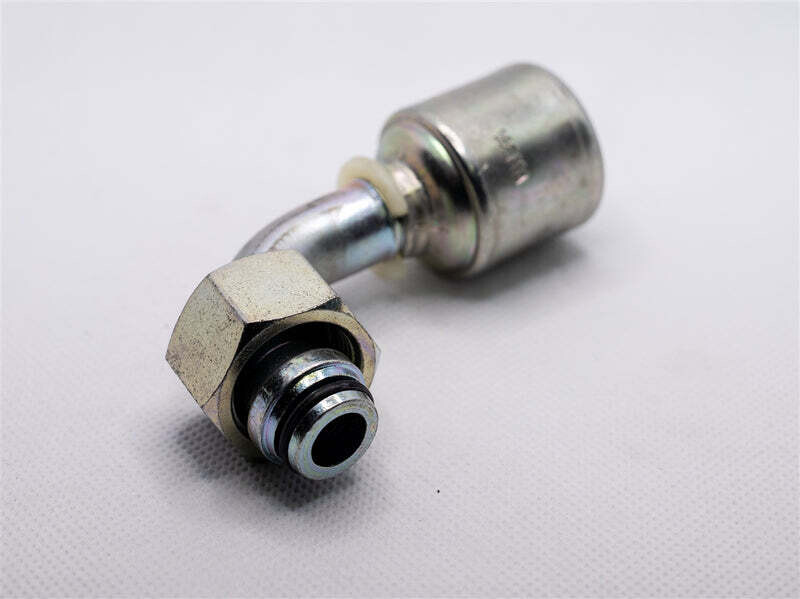

The 4G-10FDHORX90 Metric Female DIN Heavy Series Hydraulic Fitting is a 90° MegaCrimp® coupling built for DIN Heavy Series metric connections, providing a leak-resistant seal when properly crimped. Featuring the patented “C” insert, it helps accommodate varying hose constructions and wall thicknesses while distributing crimping force evenly for a more consistent, concentric seal—helping simplify inventory across compatible hose types.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-10FDHORX90
• Product Type: Hydraulic Hose Crimp Coupling / Fitting
• Style: Metric Female DIN Heavy Series, 90°
• System / Series: MegaCrimp®
• Hose ID Compatibility: 1/4 in
• Thread Size: M18 × 1.5
• Thread Pitch: 1.5
• Tube OD: 10 mm
• Nut Hex Size: 22 mm
• Overall Length: 2.27 in
• Cutoff Length: 1.24 in
• Drop Length: 1.44 in
• Design Feature: Patented “C” insert for improved sealing and compatibility across hose constructions

Ideal For

• Building hydraulic hose assemblies requiring a DIN Heavy Series metric female connection
• Applications using M18 × 1.5 threads with 10 mm tube OD components
• Tight routing situations where a 90° fitting improves hose alignment and reduces stress
• Shops using MegaCrimp® couplings to reduce SKU count across multiple hose constructions
• Hydraulic systems where leak resistance and consistent crimp sealing are critical
