Metric Female DIN Heavy Series Hydraulic Fitting

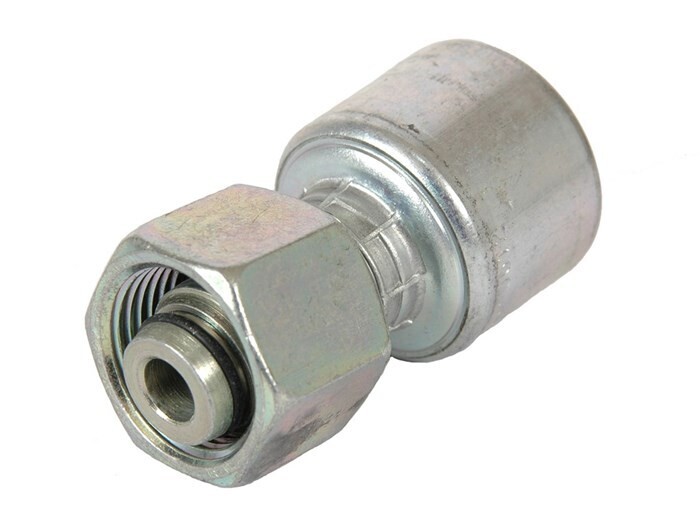

The 4G-10FDHORX Metric Female DIN Heavy Series Hydraulic Fitting is a MegaCrimp® metric female swivel hose end built for DIN Heavy Series (S) style connections, sized for 10 mm tube OD with an M18 x 1.5 thread. MegaCrimp’s patented “C” insert helps distribute crimping forces evenly to form a concentric, leak-resistant seal across different hose constructions—so your hydraulic system stays tight and tidy instead of “mysteriously glossy.”

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-10FDHORX
• Brand / Series: MegaCrimp®
• Product Type: Metric female DIN Heavy Series hydraulic crimp fitting
• Thread Size / Type: M18 x 1.5
• Thread Pitch: 1.5
• Tube OD (DIN Heavy): 10 mm
• Hose ID Compatibility: 1/4 in
• Nut Hex Size: 22 mm
• Overall Length: 2.18 in
• Cutoff Length: 1.15 in
• Seal / Crimp Design: Patented MegaCrimp® with internal “C” insert to accommodate varied hose constructions and wall thickness; promotes even crimp force distribution for a concentric seal

Ideal For

• Building or repairing 1/4" hydraulic hoses using MegaCrimp® systems
• DIN Heavy Series metric applications requiring 10 mm tube OD and M18 x 1.5 female threads
• Hydraulic lines where reliable sealing helps reduce leaks and downtime
• Shops that prefer their fittings to seal on the first try—because “try #3” is not a feature
