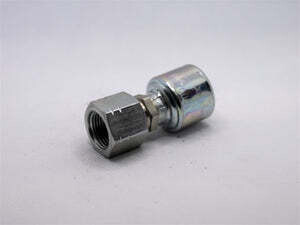

Metric Female DIN Heavy Series Hydraulic Fitting

The 8G-14FDHORX Metric Female DIN Heavy Series Hydraulic Fitting is a MegaCrimp® coupling engineered for dependable, leak-proof hydraulic connections in demanding applications. Featuring the patented “C” insert design, this fitting ensures even crimp force distribution to create a concentric seal while accommodating varying hose constructions and wall thicknesses. By allowing one size to fit multiple hose ODs, it simplifies inventory without sacrificing performance—because fewer leaks and fewer SKUs is a win on both ends.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-14FDHORX
• Series: Metric Female DIN Heavy Series
• Product Type: Hydraulic MegaCrimp® coupling
• Thread Size: M22 x 1.5
• Thread Pitch: 1.5
• Tube O.D.: 14 mm
• Hose I.D.: 1/2 inch
• Cutoff Length: 1.2 inches
• Overall Length: 2.68 inches
• Nut Hex Size: 27 mm
• Seal Technology: Patented “C” insert for concentric, leak-proof sealing
• Compatibility: Suitable for one- and two-wire hoses
• Design Advantage: Accommodates varying hose wall thicknesses and ODs

Ideal For

• Hydraulic systems requiring heavy series DIN female connections
• Applications needing consistent, leak-resistant crimp performance
• Shops aiming to reduce inventory complexity with multi-fit capability
• Equipment operating under high-pressure hydraulic conditions
