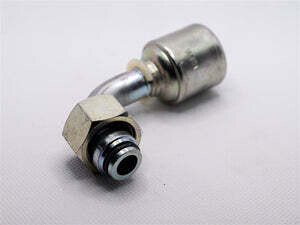

Metric Female DIN Heavy Series Hydraulic Fitting

The 6G-12FDHORX90 Metric Female DIN Heavy Series Hydraulic Fitting is a 90° elbow MegaCrimp® coupling engineered to deliver a secure, leak-resistant seal in demanding hydraulic hose assemblies. Its patented MegaCrimp design uses an internal “C” insert to help accommodate varying hose constructions and wall thicknesses while distributing crimp forces evenly to form a concentric seal—supporting streamlined inventory and consistent assembly performance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-12FDHORX90
• Brand / Series: MegaCrimp®
• Product Type: Metric female DIN heavy series hydraulic fitting (90° elbow)
• Thread Size: M20 × 1.5
• Thread Pitch: 1.5
• Nut Hex Size: 24 mm
• Tube OD: 12 mm
• Hose ID: 3/8"
• Overall Length: 2.37"
• Cutoff Length: 1.27"
• Drop Length: 1.46"
• Seal / Insert Design: Patented “C” insert for concentric sealing and broader hose OD accommodation

Ideal For

• Hydraulic hose assemblies needing a 90° metric female DIN heavy series connection
• Applications where a leak-resistant, crimped coupling is critical
• Builds using 3/8" ID hose with 12 mm tube OD connections
• Shops looking to simplify stocking with a coupling design that fits multiple hose constructions
• Tight routing situations where a 90° elbow helps reduce hose strain and improves layout
