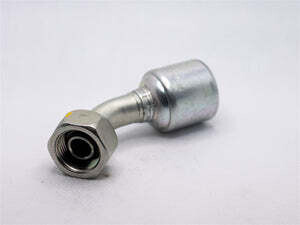

Metric Female DIN Light Series Hydraulic Fitting

The 6G-12FDLORX45 Metric Female DIN Light Series Hydraulic Fitting is a 45-degree female DIN Light Series hose end designed for hydraulic assemblies that need a metric DIN connection with improved routing clearance. Built for use with MegaCrimp® hose and coupling systems, it helps create a secure, leak-resistant crimped connection while reducing hose stress in angled installations.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-12FDLORX45
• Product Type: Metric female DIN Light Series hydraulic fitting — 45°
• Thread Size / Pitch: M18 x 1.5 (1.5 pitch)
• Tube OD: 12 mm
• Hose ID (Side 1): 3/8 in
• Overall Length: 2.71 in
• Drop Length: 0.74 in
• Cutoff Length: 1.61 in
• Nut Hex Size: 22 mm
• System Note: Compatible with MegaCrimp® crimp coupling systems

Ideal For

• Hydraulic hose assemblies needing a DIN Light Series metric female connection at a 45° angle
• Equipment using 12 mm tube OD DIN fittings with M18 x 1.5 threads
• Tight routing situations where a 45° hose end helps prevent kinks and reduces strain
• Replacing worn or leaking metric DIN hose ends on mobile or industrial hydraulic systems
