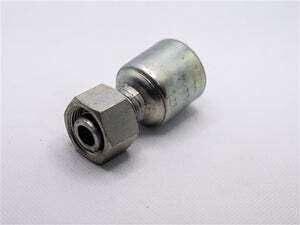

Metric Female DIN Light Series Hydraulic Fitting

The 6G-12FDLORX Metric Female DIN Light Series Hydraulic Fitting is a Metric Female DIN Light Series hose coupling built to deliver a reliable, leak-resistant crimp connection for hydraulic hose assemblies. Featuring MegaCrimp® design with the internal “C” insert, it helps accommodate different hose constructions and wall thicknesses while distributing crimp forces evenly for a concentric seal—so your hose end is the strong, silent type, not the drippy, attention-seeking type.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 6G-12FDLORX
• Product Type: Metric Female DIN Light Series hydraulic hose fitting / coupling
• Coupling Style: MegaCrimp®
• Seal / Insert Design: Patented “C” insert for even crimp force distribution and concentric sealing
• Thread Size: M18 x 1.5
• Thread Pitch: 1.5
• Tube OD: 12 mm
• Hose ID: 3/8 in
• Cutoff Length: 1.09 in
• Overall Length: 2.19 in
• Nut Hex Size: 22 mm
• Compatibility Note: Designed to accommodate varying hose constructions and wall thicknesses (one size fits multiple hose ODs)

Ideal For

• Building or repairing hydraulic hoses using DIN Light Series metric female connections
• Applications needing M18 x 1.5 threads with 12 mm tube OD specification
• Shops wanting a coupling style that can cover multiple hose constructions to simplify inventory
• Hydraulic systems where a consistent crimp seal helps reduce leaks and callbacks
