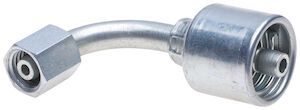

Metric Female DIN Light Series Hydraulic Fitting

The 4G-8FDLORX90 Metric Female DIN Light Series Hydraulic Fitting is a 90° metric female DIN light-series MegaCrimp® coupling designed for a reliable, leak-resistant crimp connection on hydraulic hose assemblies. Its patented internal “C” insert helps form a concentric seal by evenly distributing crimping forces, and it’s built to work across different hose constructions and wall thicknesses—so one coupling size can cover more hose builds (and your inventory can stop growing like it’s trying to win an award).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-8FDLORX90
• Product Type: Hydraulic MegaCrimp® coupling / fitting
• Fitting Style: Metric Female DIN Light Series 90°
• Thread Size: M14 x 1.5
• Thread Pitch: 1.5
• Tube OD: 8 mm
• Hose ID Compatibility: 1/4 in
• Length: 2.36 in
• Nut Hex Size: 17 mm
• Cutoff Length: 1.34 in
• Drop Length: 1.38 in
• Seal / Design Feature: Patented internal “C” insert for even crimp-force distribution and a concentric seal
• Inventory Benefit: One size can accommodate multiple hose constructions and wall thicknesses (including one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a 90° metric female DIN light-series connection
• Applications where a consistent, leak-resistant crimp seal is critical
• Tight routing situations where a 90° fitting improves hose alignment and reduces strain
• Shops aiming to simplify coupling inventory across multiple hose types and builds
